ENDURA BRAID: PERFORMANCE, STRENGTH, AND DURABILITY

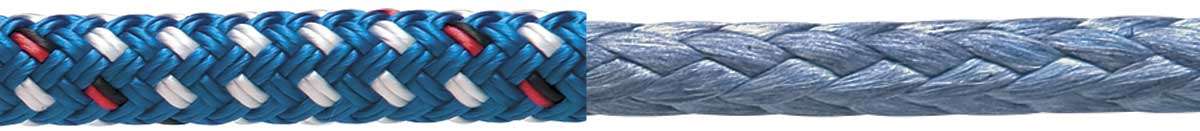

Endura Braid rope is specially engineered with a 12-strand coated Dyneema® core and a 24 carrier braided polyester cover.

Polyester

Dyneema®

Endura Braid Rope

3/16″ 1/4″ 5/16″ 3/8″ 7/16″ 1/2″
Tensile 3,100 4,500 8,100 11,000 14,900 21,500
Weight 1.1 1.8 3.0 4.5 5.4 6.6
9/16″ 5/8″ 3/4″ 7/8″ 1″ 1 1/8″
Tensile 25,200 29,000 40,000 53,900 70,000 96,000
Weight 8.6 11.8 15.8 20.9 27.1 34.4

BENEFITS

Very high strength-to-weight ratio, very low stretch, low creep and outstanding durability.

TECHNICAL INFORMATION

Material: HMPE
Splice: Brummel
Temperature: HMPE melts at 290° F
Stretch: 0.7% @ 20% of tensile

SIZES

• 1/8”
• 3/16”
• 1/4”
• 5/16”
• 3/8”
• 7/16”
• 1/2”
• 9/16”
• 5/8”
• 3/4”
• 7/8”
• 1”
• 1-1/8”
• 1-1/4”

APPLICATIONS

Wire rope replacement used in stunt and special effects rigging, winch line and high line.

COLORS

White

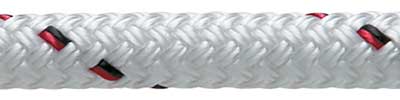

Endura Braid White Rope

Black

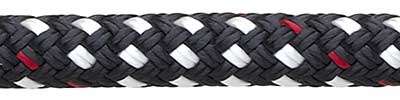

Endura Braid Black Rope

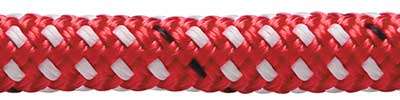

Red

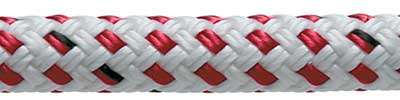

Red Fleck

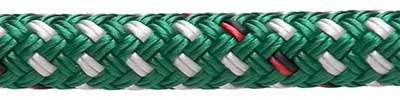

Green

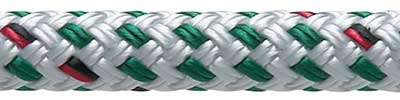

Green Fleck

Blue Fleck

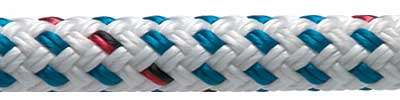

Endura Braid Blue Fleck Rope
