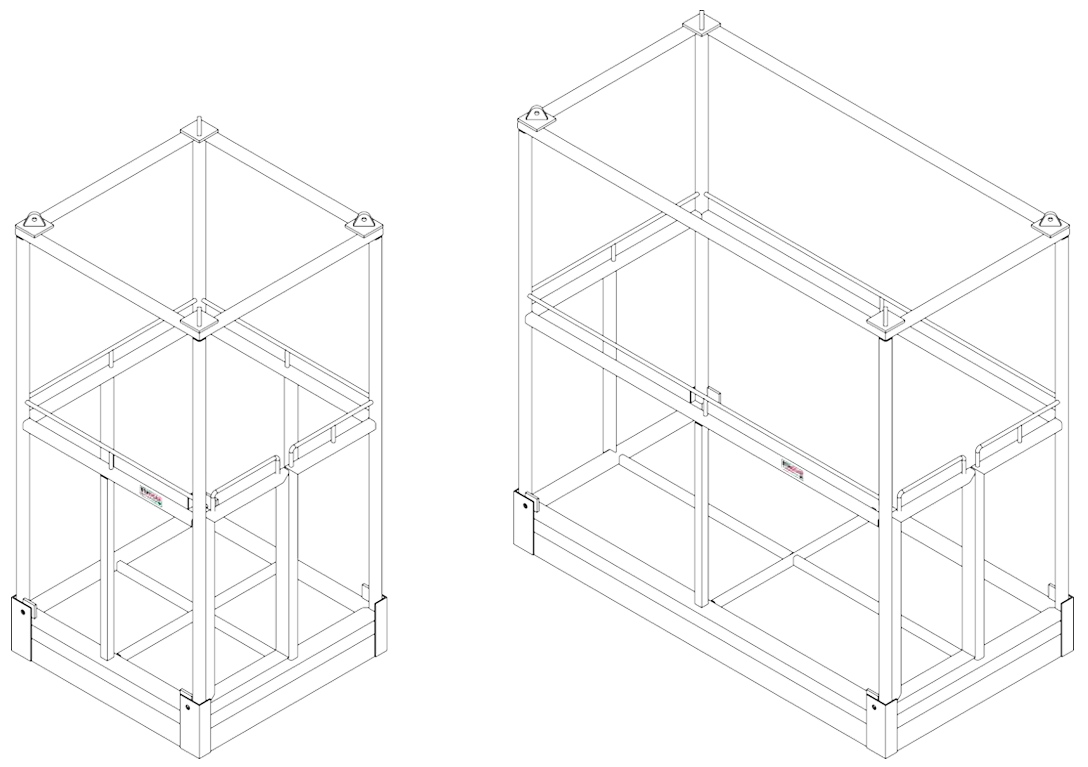

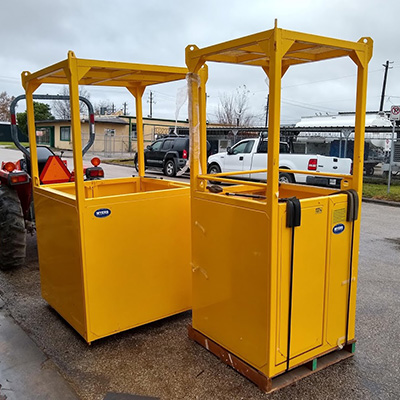

Personnel Basket (Model V) with Shackle
- Custom Sizes Available
- Painted or Galvanized
- Optional Fork Pockets
| MODEL NUMBER |
SIZE (in.) | CAP (lbs.) | WEIGHT W/O TEST WEIGHT (lbs.) |
WEIGHT OF TEST WEIGHT (lbs.) |
|---|---|---|---|---|
| V123xxx | 30″ x 30″ | 300 | 600 | 375 |
| V223xxx | 36″ x 36″ | 500 | 700 | 625 |
| V323xxx | 36″ x 48″ | 550 | 810 | 625 |
| V423xxx | 36″ X 72″ | 550 | 1020 | 700 |
| V523xxx | 36″ x 60″ | 1000 | 920 | 1250 |
| V623xxx | 48″ x 48″ | 1000 | 950 | 1250 |
| V723xxx | 48″ x 60″ | 1000 | 1090 | 1250 |
| V823xxx | 48″ x 72″ | 1250 | 1240 | 1562 |
| V923xxx | 48″ x 96″ | 1500 | 1520 | 1875 |
| V133xxx | 60″ x 96″ | 2500 | 1810 | 3125 |
**Custom options available upon request**

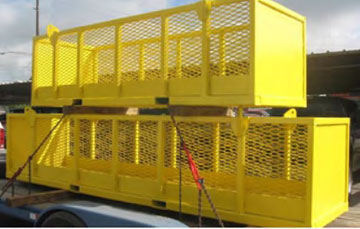

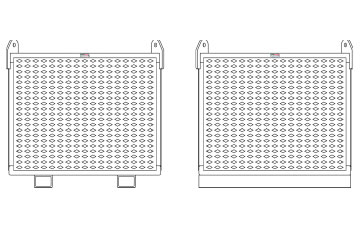

Material Basket (Model X)
- Custom Sizes Available
- Painted or Galvanized
- Optional Stainless Steel
| MODEL NUMBER |
SIZE W x H (ft.) |
SIZE Length (ft.) |
CAP (tons.) | WEIGHT (lbs.) |
|---|---|---|---|---|
| X123xxx | 4′ x 2′ | 4′ | 1 | 310 |
| X223xxx | 4′ x 2′ | 8′ | 1 | 480 |
| X323xxx | 4′ x 2′ | 10′ | 1 | 560 |
| X423xxx | 4′ x 2′ | 12′ | 1 | 650 |
| X523xxx | 4′ x 2′ | 14′ | 1 | 730 |
| X623xxx | 4′ x 3′ | 4′ | 1 | 400 |
| X723xxx | 4′ x 3′ | 8′ | 1 | 650 |
| X823xxx | 4′ x 3′ | 10′ | 1 | 770 |
| X923xxx | 4′ x 3′ | 12′ | 1 | 900 |
| X133xxx | 4′ x 3′ | 14′ | 1 | 1020 |
| X233xxx | 4′ x 4′ | 4′ | 1 | 480 |
| X333xxx | 4′ x 4′ | 8′ | 1 | 810 |
| X433xxx | 4′ x 4′ | 10′ | 1 | 980 |
| X533xxx | 4′ x 4′ | 12′ | 1 | 1150 |
| X633xxx | 4′ x 4′ | 14′ | 1 | 1310 |
| X733xxx | 4′ x 2′ | 4′ | 2 | 630 |
| X833xxx | 4′ x 2′ | 8′ | 2 | 960 |
| X933xxx | 4′ x 2′ | 10′ | 2 | 1130 |
| X143xxx | 4′ x 2′ | 12′ | 2 | 1290 |
| X243xxx | 4′ x 2′ | 14′ | 2 | 1460 |
| X343xxx | 4′ x 3′ | 4′ | 2 | 800 |
| X443xxx | 4′ x 3′ | 8′ | 2 | 1290 |
| X543xxx | 4′ x 3′ | 10′ | 2 | 1540 |
| X643xxx | 4′ x 3′ | 12′ | 2 | 1790 |
| X743xxx | 4′ x 3′ | 14′ | 2 | 2040 |
| X843xxx | 4′ x 4′ | 4′ | 2 | 960 |
| X943xxx | 4′ x 4′ | 8′ | 2 | 1630 |
| X153xxx | 4′ x 4′ | 10′ | 2 | 1960 |
| X253xxx | 4′ x 4′ | 12′ | 2 | 2290 |
| X353xxx | 4′ x 4′ | 14′ | 2 | 2620 |
| X453xxx | 4′ x 2′ | 4′ | 3 | 940 |
| X553xxx | 4′ x 2′ | 8′ | 3 | 1440 |
| X653xxx | 4′ x 2′ | 10′ | 3 | 1690 |
| X753xxx | 4′ x 2′ | 12′ | 3 | 1940 |
| X853xxx | 4′ x 2′ | 14′ | 3 | 2190 |
| X953xxx | 4′ x 3′ | 4′ | 3 | 1190 |
| X163xxx | 4′ x 3′ | 8′ | 3 | 1940 |
| X263xxx | 4′ x 3′ | 10′ | 3 | 2310 |
| X363xxx | 4′ x 3′ | 12′ | 3 | 2690 |
| X463xxx | 4′ x 3′ | 14′ | 3 | 3060 |
| X563xxx | 4′ x 4′ | 4′ | 3 | 1440 |
| X663xxx | 4′ x 4′ | 8′ | 3 | 2440 |
| X763xxx | 4′ x 4′ | 10′ | 3 | 2940 |
| X863xxx | 4′ x 4′ | 12′ | 3 | 3440 |
| X963xxx | 4′ x 4′ | 14′ | 3 | 3940 |
| X173xxx | 4′ x 2′ | 4′ | 4 | 1260 |
| X273xxx | 4′ x 2′ | 8′ | 4 | 1920 |
| X373xxx | 4′ x 2′ | 10′ | 4 | 2250 |
| X473xxx | 4′ x 2′ | 12′ | 4 | 2590 |
| X573xxx | 4′ x 2′ | 14′ | 4 | 2920 |
| X673xxx | 4′ x 3′ | 4′ | 4 | 1590 |
| X773xxx | 4′ x 3′ | 8′ | 4 | 2590 |
| X873xxx | 4′ x 3′ | 10′ | 4 | 3090 |
| X973xxx | 4′ x 3′ | 12′ | 4 | 3580 |
| X183xxx | 4′ x 3′ | 14′ | 4 | 4080 |
| X283xxx | 4′ x 4′ | 4′ | 4 | 1920 |
| X383xxx | 4′ x 4′ | 8′ | 4 | 3250 |
| X483xxx | 4′ x 4′ | 10′ | 4 | 3920 |
| X583xxx | 4′ x 4′ | 12′ | 4 | 4580 |
| X683xxx | 4′ x 4′ | 14′ | 4 | 5250 |
**Custom options available upon request**
