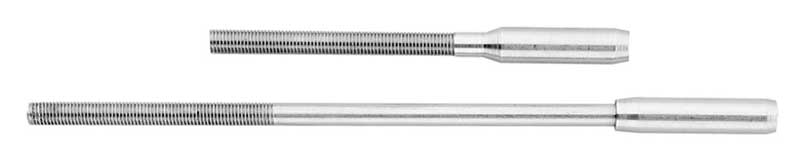

Swage Studs – Wire End Terminals for Machine Swaging T-316 S/S

Swage Studs
Catalog Number Thread Size X Length Wire Size Cat # Used On
32-601* 1/4-28 L.H. x 2 1/2 3/32″ 01
32-602* 1/4-28 L.H. x 2 1/2 1/8″ 01
32-603* 1/4-28 L.H. x 2 1/2 5/32″ 01
32-604 10-32 L.H. x 1 7/8 ✝ 1/16″ 03
32-605 10-32 L.H. x 1 7/8 3/32″ 03 & 19
32-607* 1/4-28 L.H. x 2 1/2 3/32″ 04 & 19
32-608* 1/4-28 L.H. x 2 1/2 1/8″ 04 & 19
32-609 1/4-28 L.H. x 2 1/2 5/32″ 04 & 19
32-610 1/4-28 R.H. x 2 1/2 3/32″ 04(RH) & 42
32-611 1/4-28 R.H. x 2 1/2 1/8″ 04(RH) & 42
32-612 1/4-28 R.H. x 2 1/2 5/32″ 04(RH) & 42
32-613 10-32 R.N. x 3 t ✝ 1/16″ 11
32-614 10-32 R.H. x 3 3/32″ 11
32-616 1/4-28 R.N. x 3 3/4 1/8″ 12-104
32-617 1/4-28 R.H. x 3 3/4 5/32″ 12-105
32-618 5/16-24 R.H. x 2 3/4 5/32″ 05, 07 & 43
32-619 5/16-24 R.H. x 2 3/4 3/16″ 05, 07 & 43
32-620 318-24 R.N. x 3 3/16″ 06, 08 & 44
32-621 3/8-24 R.H. x 3 7/32″ 06, 08 & 44
32-622 3/8-24 R.N. x 3 1/4″ 06, 08 & 44
32-623* 3/8-24 R.H. x 4 3/16″ 02
32-624* 3/8-24 R.N. x 4 7/32″ 02
32-625* 3/8-24 R.H. x 4 1/4″ 02
32-626 1/2-20 R.H. x 3 1/2 1/4″ 09/45
32-627 1/2-20 R.H. x 3 1/2 9/32″ 09/45
32-628 1/2-20 R.H. x 3 1/2 ‘ 5/16″ 09/45
32-629 5/8-18 R.H. x 4 1/4 5/16″ 10/47
32-630 5/8-18 R.H. x 4 1/4 3/8″ 10/47

* For Backstay Adjuster Only (1/4-28 Size Includes Square Nut)
✝ Swage with 3/32 die.

Swage Stud – Wire End Terminals for Machine Swaging – Extra Long

Catalog Number Thread Size X Length Wire Size Added Length
32-631 5/16-24 R.H. 5/32″ 1 1/2″
32-632 5/16-24 R.H. 3/16″ 1 3/4″
32-633 3/8-24 R.H. 3/16″ 1 3/4″
32-634 3/8-24 R.H. 7/32* 2 1/4″
32-635 3/8-24 R.H. 1/4″ 2 1/2″
32-636 1/2-20 R.H. 1/4″ 2 1/2″

* Additional Length Over Standard Terminal.

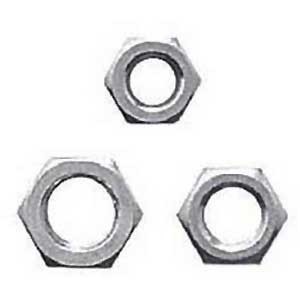

Swage Studs - Locking Nuts

Locking Nuts

Catalog
Number		 Thread
Size		 Catalog #
Used On
35-601 10-32 R.H. 03 & 11
35-602 10-32 L. H . 03
35-603 1 1/4-28 R.H. 04 & 19
35-604 1/4-28 L.H. 04, 19 & 21
35-605 5/16-24 R.H. 05 & 07
35-606 5/16-24 L.H. 05 & 07
35-607 3/8-24 R.H. 06 & 08
35-608 3/8-24 L.H. 06 & 08
35-609 1/2-20 R.H. General
35-610 1/2-20 L.H. General
35-611 5/8-18 R.H. General
35-612 5/8-18 L.H. General

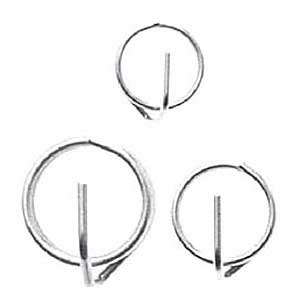

Swage Studs - Locking Rings

Locking Rings

Catalog
Number		 Catalog Number
Used On
36-601 07
36-602 08
36-603 09
36-604 10
36-605 04

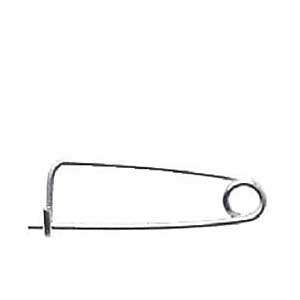

Swage Studs - Safety Pins

Safety Pins

Catalog
Number		 Usage Catalog
Number		 Pieces
SP-1 3/16′ & 1/4 Pins SP-1-P
SP-1-100		 10
100
