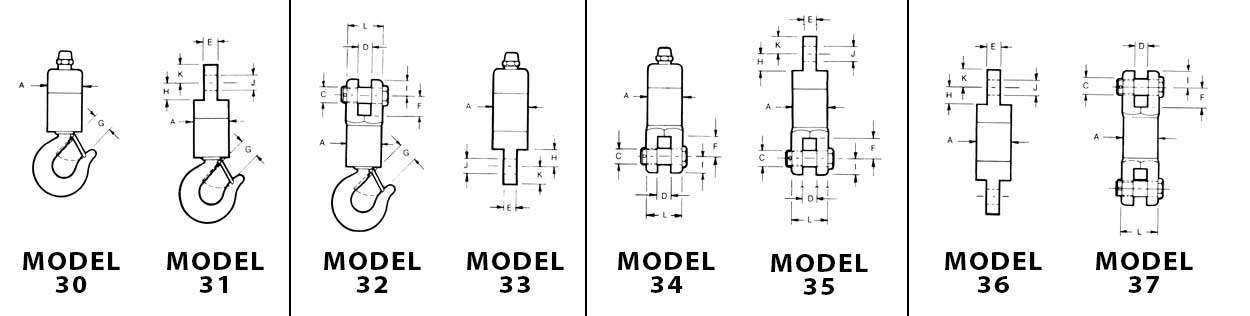

Roller Bearing Swivels
High Performance at Lower Cost
- Economically priced, these swivels contain a single roller bear-ing that accommodates the shorter rope lengths such as those used with lifting equipment. (These applications do not require the exceptionally low torque capability provided by ball bearing-equipped swivels.)
- Roller bearing swivels with rope diameters of more than 1/4″ are equipped with Timken® tapered roller bearings.
- Made of alloy steels to exacting tolerances, these swivels are zinc plated for corrosion resistance. They provide an ultimate strength of 5 to 1 over SWL (Safe Working Loads).
3000 Series Swivels
| Size | SWL Tons |
Wire Rope Size |
A | C Pin Diam. |
D | E |
| 12 | .5 | 1/8 | 7/8 | 1/4 | 1/4 | .234 |
| 18 | .62 | 3/16 | 1 | 5/16 | 5/16 | .297 |
| 25 | .75 | 1/4 | 1 1/8 | 3/8 | 3/8 | .359 |
| 31 | 1.5 | 5/16 | 1 7/8 | 3/4 | 13/16 | 11/16 |
| 37 | 2 | 3/8 | 1 7/8 | 3/4 | 13/16 | 11/16 |
| 43 | 3 | 7/16 | 2 1/4 | 3/4 | 1 | 3/4 |
| 50 | 3 | 1/2 | 2 1/4 | 3/4 | 1 | 3/4 |
| 56 | 5 | 9/16 | 3 | 1 | 1 1/8 | 1 |
| 62 | 5 | 5/8 | 3 | 1 | 1 1/8 | 1 |
| 75 | 8.5 | 3/4 | 3 1/4 | 1 1/8 | 1 9/16 | 1 1/4 |
| 87 | 10 | 7/8 | 3 1/2 | 1 1/4 | 1 3/4 | 1 7/16 |
| 99 | 15 | 1 | 4 | 1 3/8 | 1 3/4 | 1 15/16 |
| Size | F | G | H | I | J Hole Diam. |
K |
| 12 | 1/2 | N/A | 1/2 | 7/16 | 1/4 | 3/8 |
| 18 | 5/8 | N/A | 9/16 | 1/2 | 5/16 | 1/2 |
| 25 | 3/4 | N/A | 5/8 | 9/16 | 3/8 | 5/8 |
| 31 | 1 3/8 | 1 | 1 | 1 | 13/16 | 15/16 |
| 37 | 1 3/8 | 1 1/16 | 1 | 1 | 13/16 | 15/16 |
| 43 | 1 3/8 | 1 11/32 | 1 3/16 | 1 1/8 | 1 | 1 1/8 |
| 50 | 1 3/8 | 1 11/32 | 1 3/16 | 1 1/8 | 1 | 1 1/8 |
| 56 | 1 3/4 | 1 11/16 | 1 1/2 | 1 1/4 | 1 1/4 | 1 1/2 |
| 62 | 1 3/4 | 1 11/16 | 1 1/2 | 1 1/4 | 1 1/4 | 1 1/2 |
| 75 | 2 1/8 | 2 1/16 | 1 5/8 | 1 1/2 | 1 3/8 | 1 5/8 |
| 87 | 3 1/8 | 2 1/4 | 2 3/8 | 1 7/8 | 1 5/8 | 1 13/16 |
| 99 | 3 1/8 | 3 | 2 3/8 | 1 7/8 | 2 | 2 1/8 |
All dimensions are in inches.
Specifications could change without notice.
