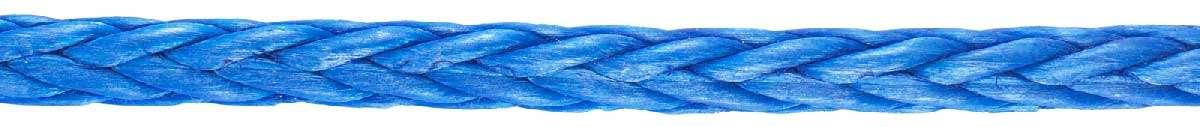

ENDURA 12: VERY HIGH STRENGTH AND LIGHT WEIGHT
Endura 12 rope is made of 100% HMPE Fiber. This 12-strand single braid is treated with our unique Marine-Tech coating for excellent abrasion and UV resistance. This ultra low stretch line yields the highest levels of performance, time and again.
| 1/8″ | 3/16″ | 1/4″ | 5/16″ | 3/8″ | 7/16″ | 1/2″ | |
| Tensile | 2,800 | 6,050 | 9,700 | 14,500 | 18,800 | 24,000 | 34,300 |
| Weight | 0.5 | 1.2 | 1.8 | 2.5 | 3.5 | 3.8 | 6.2 |
| 9/16″ | 5/8″ | 3/4″ | 7/8″ | 1″ | 1 1/8″ | 1 1/4″ | |
| Tensile | 42,000 | 58,000 | 69,000 | 97,500 | 115,900 | 149,000 | 176,000 |
| Weight | 7.2 | 10.1 | 14.7 | 18.3 | 21.4 | 31.0 | 36.6 |
BENEFITS
Ultra high tensile, lightweight, low stretch, spliceable and it floats
TECHNICAL INFORMATION
Material: HMPE
Splice: Brummel
Temperature: HMPE melts at 290° F
Stretch: 0.7% @ 20% of tensile
SIZES
• 1/8”
• 3/16”
• 1/4”
• 5/16”
• 3/8”
• 7/16”
• 1/2”
• 9/16”
• 5/8”
• 3/4”
• 7/8”
• 1”
• 1-1/8”
• 1-1/4”
APPLICATIONS
Wire rope replacement used in stunt and special effects rigging, winch line and high line.
COLORS
White

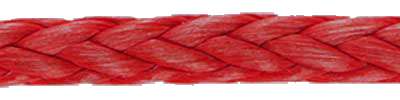

Red

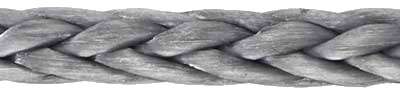

Grey

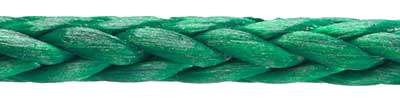

Green

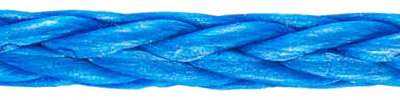

Blue
