VERTICAL LIFTING LOCKING CLAMP MODEL FR

Vertical Lifting Locking The Model FR is a vertical lifting tool for relatively light work. It is small and easy to handle in capacities through three tons. It incorporates a “Lock Closed” feature which facilitates attaching the clamp to the plate.
Other capacities available upon request.

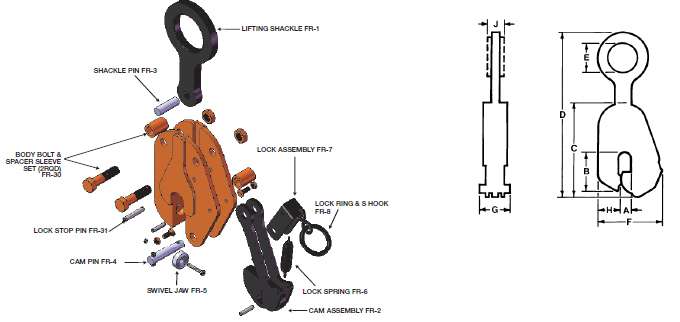

Vertical Lifting Locking - Model FR
Vertical Lifting Locking - Model FR
Cap
Tons		 Plate
Thickness
A		 B C MAX.
D		 E F G H J Wt
(lbs)
1/2 0 – 3/4 2 13/16 7 11 1/4 2 3/8 4 5/8 2 1/2 1 1/2 1/2 8
1/2 – 1 2 13/16 7 11 1/4 2 3/8 4 7/8 2 1/2 1 1/2 1/2 8
3/4 – 1 1/4 2 13/16 7 11 1/4 2 3/8 5 1/8 2 1/2 1 1/2 1/2 9
1 – 1 1/2 2 13/16 7 11 1/4 2 3/8 5 3/8 2 1/2 1 1/2 1/2 10
1 1/4 – 1 3/4 2 13/16 7 11 1/4 2 3/8 5 3/8 2 1/2 1 1/2 1/2 11
1 0 -3/4 3 3/16 9 13 3/4 2 5/8 5 7/8 3 3/16 1 5/8 5/8 14
1/2 – 1 3 3/16 9 13 3/4 2 5/8 6 1/8 3 3/16 1 5/8 5/8 15
3/4 – 1 1/4 3 3/16 9 13 3/4 2 5/8 6 3/8 3 3/16 1 5/8 5/8 15
1 – 1 1/2 3 3/16 9 13 3/4 2 5/8 6 5/8 3 3/16 1 5/8 5/8 16
1 1/4 – 1 3/4 3 3/16 9 13 3/4 2 5/8 6 7/8 3 3/16 1 5/8 5/8 17
1 1/2 – 2 3 3/16 9 13 3/4 2 5/8 7 1/8 3 3/16 1 5/8 5/8 18
2 0 -1 3 1/2 9 16 3/8 3 5/8 6 3/4 3 3/8 2 1/8 3/4 23
3/4 – 1 1/2 3 1/2 9 16 3/8 3 5/8 7 1/4 3 3/8 2 1/8 3/4 23
1 1/4 – 2 3 1/2 9 16 3/8 3 5/8 7 3/4 3 3/8 2 1/8 3/4 23
1 3/4 – 2 1/2 3 1/2 9 16 3/8 3 5/8 8 1/4 3 3/8 2 1/8 3/4 24
3 0 – 1 1/4 4 3/16 10 3/4 18 3/8 3 5/8 7 5/8 3 9/16 2 7/16 3/4 30
3/4 – 1 1/2 4 3/16 10 3/4 18 3/8 3 5/8 7 7/8 3 9/16 2 7/16 3/4 31
1 1/4 – 2 4 3/16 10 3/4 18 3/8 3 5/8 8 3/8 3 9/16 2 7/16 3/4 32
1 3/4 – 2 1/2 4 3/16 10 3/4 18 3/8 3 5/8 8 7/8 3 9/16 2 7/16 3/4 33

MODEL J

The Model J is a vertical lifting clamp capable of turning a single plate or member from horizontal to vertical and back to horizontal through the same 90 degree arc.

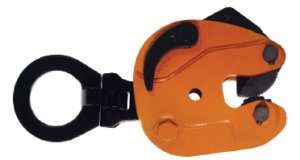

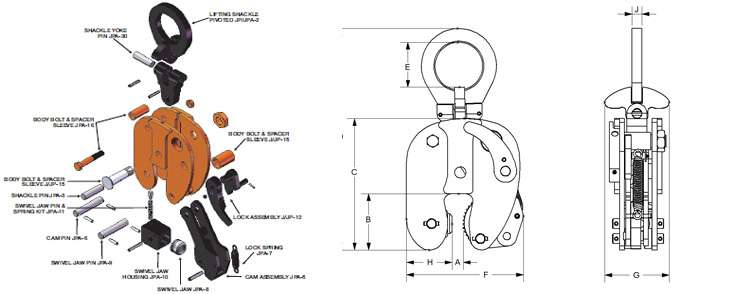

Vertical Lifting Locking - Model JP
Vertical Lifting Locking - Model JP
Cap
Tons		 Plate Thickness
A		 B C MAX.
D
1/2 0 – 5/8 2 3/4 6 1/2 12
1/2 – 1 2 3/4 6 1/2 12
3/4 – 1 1/4 2 3/4 6 1/2 12
1 1/4 – 1 3/4 2 3/4 6 1/2 12
1 0 – 3/4 3 3/8 7 3/4 13 3/4
1/2 – 1 3 3/8 7 3/4 13 3/4
3/4 – 1 1/4 3 3/8 7 3/4 13 3/4
1 -1 1/2 3 3/8 7 3/4 13 3/4
1 1/2 – 1 3/4 3 3/8 7 3/4 13 3/4
2 0 -1 3 5/8 9 1/2 17 3/8
3/4 -1 1/2 3 5/8 9 1/2 17 3/8
1 1/4 – 2 3 5/8 9 1/2 17 3/8
2 -2 3/4 3 5/8 9 1/2 17 3/8
4 3/16 – 1 1/4 4 3/8 11 1/2 20 1/8
1 – 2 4 3/8 11 1/2 20 1/8
2 – 3 4 3/8 11 1/2 20 1/8
3 – 4 4 3/8 11 1/2 20 1/8
6 1/4 – 1 3/8 4 7/8 12 3/8 20 7/8
1 – 2 1/8 4 7/8 12 3/8 20 7/8
2 – 3 1/8 4 7/8 12 3/8 20 7/8
3 – 4 1/8 4 7/8 12 3/8 20 7/8
8 3/8 – 1 1/2 5 3/8 12 3/4 22 5/8
1 – 2 1/8 5 3/8 12 3/4 22 5/8
2 – 3 1/8 5 3/8 12 3/4 22 5/8
3 – 4 1/8 5 3/8 12 3/4 22 5/8
12 1/2 – 2 1/2 7 1/4 17 3/8 28 1/8
2 – 4 7 1/4 17 3/8 28 1/8
4 – 6 7 1/4 17 3/8 28 1/8
16 1/2 – 2 1/2 8 19 13/16 32 5/16
20 1/2 – 3 8 5/8 21 13/16 35 7/8
25 1/2 – 2 1/2 8 5/8 23 5/8 35 7/8
3 – 5 8 5/8 23 5/8 35 7/8
4 – 6 8 5/8 23 5/8 35 7/8
30 1/2 – 3 9 9/16 24 1/4 39 7/8
50 3 – 5 10 7/8 30 7/8 46 7/16
Cap
Tons		 E MAX F G H J Wt
(lbs)
1/2 2 3/8 5 5/8 3 1/4 2 1/4 1/2 10
2 3/8 6 3 1/4 2 1/4 1/2
2 3/8 6 1/4 3 1/4 2 1/4 1/2
2 3/8 6 3/4 3 1/4 2 1/4 1/2
1 2 5/8 7 3 1/2 2 5/8 5/8 15
2 5/8 7 1/4 3 1/2 2 5/8 5/8
2 5/8 8 3 1/2 2 5/8 5/8
2 5/8 8 1/4 3 1/2 2 5/8 5/8
2 5/8 8 3/4 3 1/2 2 5/8 5/8
2 3 1/2 8 3/4 4 1/2 3 3/4 36
3 1/2 9 1/4 4 1/2 3 3/4
3 1/2 9 3/4 4 1/2 3 3/4
3 1/2 10 1/2 4 1/2 3 3/4
4 3 1/2 9 1/4 4 1/2 3 1/4 1 1/2 42
3 1/2 10 4 1/2 3 1/4 1 1/2
3 1/2 11 4 1/2 3 1/4 1 1/2
3 1/2 12 4 1/2 3 1/4 1 1/2
6 3 1/2 10 3/4 4 3/4 3 3/4 1 3/4 64
3 1/2 11 1/2 4 3/4 3 3/4 1 3/4
3 1/2 12 1/2 4 3/4 3 3/4 1 3/4
3 1/2 13 1/2 4 3/4 3 3/4 1 3/4
8 3 3/4 12 3/8 5 1/4 4 1/4 2 83
3 3/4 13 5 1/4 4 1/4 2
3 3/4 14 5/8 5 1/4 4 1/4 2
3 3/4 15 5/8 5 1/4 4 1/4 2
12 3 7/8 15 15/16 7 1/6 5 3/8 2 203
3 7/8 17 7/16 7 1/6 5 3/8 2 212
3 7/8 19 7/16 7 1/6 5 3/8 2 222
16 4 1/2 19 13/16 8 11/16 6 1/4 2 1/4 350
20 5 21 11 1/2 6 7/8 2 3/4 456
25 5 19 1/16 9 5/8 6 3/4 3 483
5 21 9/16 9 5/8 6 3/4 3 495
5 22 9/16 9 5/8 6 3/4 3 502
30 5 22 13/16 14 9/16 7 5/8 3 625
50 5 29 13/16 11 1/8 9 1/4 3 1/2 1306
