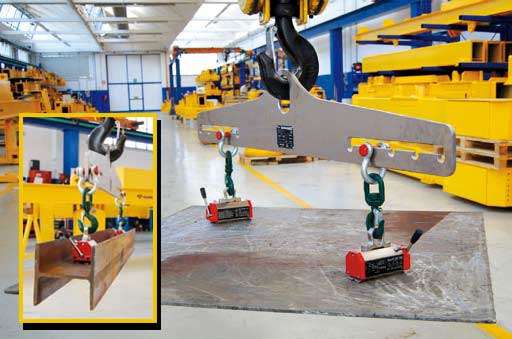

The MFB beam allows the perfect coupling of MaxX lifters, allowing the handling of big size loads with horizontal operation.

MFB is available in MFB500 for load up to 500 Kg. (1110 lbs) and MFB2000 for load up to 2000 Kg. (4450 lbs) versions, adaptable to all types of MaxX.

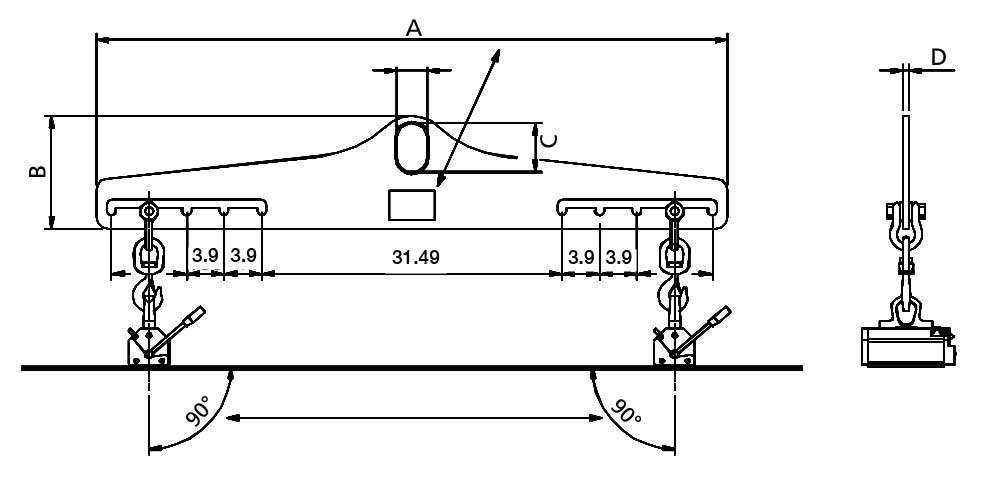

The distance of the 2 lifting hooks, included in the standard specification, can be easily changed using the 5 pre-arranged positioning slots.

MFB 500
A (inch) 66.14
B (inch) 11.8
C (inch) 5.1
D (inch) .59
Weight (lbs) 81
MFB 2000
A (inch) 74.8
B (inch) 16.3
C (inch) 6.3
D (inch) .7
Weight (lbs) 165

Technical Characteristics / Load Capacity

Plates Rounds
In
Combination
With		 SLW –
Load
(lbs)		 Max
Length
(inches)		 Max
Width
(inches)		 SLW –
Load
(lbs)		 Max
Length
(inches)
2 MaxX 250  880  118 59 440 118
2 MaxX 300 E 1100 118 59  440 118
2 MaxX TG 150 440 118 59 220 118
2 MaxX TG 300 1100 118 59 550 118
Plates Rounds
In
Combination
With		 SLW –
Load
(lbs)		 Max
Length
(inches)		 Max
Width
(inches)		 SLW –
Load
(lbs)		 Max
Length
(inches)
2 MaxX 500 1760 118 59 880 118
2 MaxX 1000 3300 118 59 1650 118
2 MaxX 1500 4400 118 59 2200 118
2 MaxX 2000 4400 118 59 2200 118
2 MaxX 600 E 1980 118 59 1100 118
