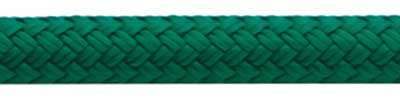

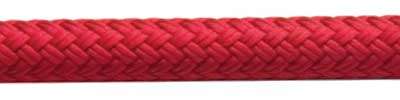

V100 VECTRAN ROPE – THE ULTIMATE IN HIGH LOAD PERFORMANCE
V-100 Vectran Rope features a braided 12-strand single braid coated core with polyester cover.
| 3/16″ | 1/4″ | 5/16″ | 3/8″ | 7/16″ | 1/2″ | 9/16″ | 5/8″ | 3/4″ | |
| Tensile | 2,400 | 4,600 | 8,600 | 12,600 | 17,200 | 19,200 | 23,500 | 26,000 | 33,620 |
| Weight | 1.5 | 2.1 | 3.5 | 5.3 | 6.5 | 7.1 | 9.9 | 13.4 | 17.5 |
BENEFITS
Highest strength, lowest stretch, and lowest creep of any 12-strand
TECHNICAL INFO
Material: Vectran core, polyester cover
Splice: Core-to-Core Eye Splice
Temperature: Vectran decomposes at 660° F Polyester melts @ 480° F
Stretch: 0.71 @ 20% of tensile
APPLICATIONS
Used in stunt and special effects rigging, winch line and high line.
SIZES
• 3/16”
• 1/4”
• 5/16”
• 3/8”
• 7/16”
• 1/2”
• 9/16”
• 5/8”
• 3/4”
COLORS
WHITE WITH TRACER
RED
GREEN
BLUE
BLACK

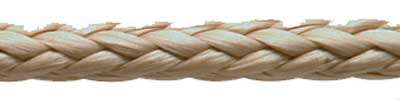

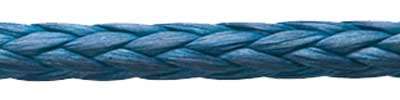

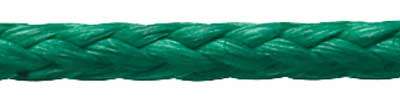

V12 – STRONG, LOW STRETCH 12-STRAND ROPE
Vectran Rope V-12 is a superior braided 12-strand single braid treated with our Marine-Tech coating.
| 1/8″ | 5/32″ | 3/16″ | 1/4″ | 5/16″ | 3/8″ | 7/16″ | 1/2″ | |
| Tensile | 2,100 | 3,300 | 4,950 | 7,200 | 10,900 | 17,000 | 26,000 | 29,200 |
| Weight | 0.5 | 0.8 | 1.2 | 1.5 | 3.3 | 4.7 | 6.6 | 7.5 |
BENEFITS
A combination of high strength, low weight plus low creep. An excellent choice for static loads or winch lines where recruiting and z banding has been an issue.
TECHNICAL INFO
Material: HMPE / Technora core, Polyester Cover
Splice: Core-to-Core Eye Splice
Temperature: HMPE melts @ 290° F Technora decomposes @ 1200° F
Stretch: 1.20 @ 20% of tensile
APPLICATIONS
Winch lines
SIZES
• 1/8”
• 5/32”
• 3/16”
• 1/4”
• 5/16”
• 3/8”
• 7/16”
• 1/2”
COLORS
TAN
RED
GREEN
BLUE
BLACK
