7 x 19 Very Flexible Galvanized
7 x 19 Aircraft Cable – Very Flexible: Used when flexibility & fatigue resistance are essential. Commonly used when pulleys are involved in the application.
MANUFACTURED PER FEDERAL SPECIFICATION RR-W-410/ASTM1023
| Cable Diameter in inches. |
Weight / Mft. in lbs. |
Minimum Break Strength in lbs. |
|---|---|---|
| 1/16″ | 7.5 | 480 |
| 5/64″ | 11.0 | 650 |
| 3/32″ | 17.0 | 920 |
| 1/8″ | 29.0 | 2,000 |
| 5/32″ | 45.0 | 2,800 |
| 3/16″ | 65.0 | 4,200 |
| 7/32″ | 86.0 | 5,600 |
| 1/4″ | 110.0 | 7,000 |
| 9/32″ | 139.0 | 8,000 |
| 5/16″ | 173.0 | 9,800 |
| 3/8″ | 243.0 | 14,400 |

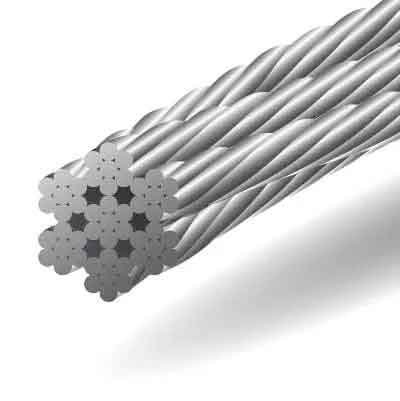

7 x 7 Flexible Galvanized
7 x 7 Aircraft Cable – Flexible: One of the most common types of cable. Used where extreme flexibility is not necessary. Performs well in a wide range of mechanical applications.
MANUFACTURED PER FEDERAL SPECIFICATION RR-W-410/ASTM1023
| Cable Diameter in inches. |
Weight / Mft. in lbs. |
Minimum Break Strength in lbs. |
|---|---|---|
| 3/64″ | 4.2 | 270 |
| 1/16″ | 7.5 | 480 |
| 5/64″ | 11.0 | 650 |
| 3/32″ | 16.0 | 920 |
| 1/8″ | 28.5 | 1,700 |
| 9/64″ | 37.0 | 2,100 |
| 5/32″ | 43.0 | 2,600 |
| 3/16″ | 62.0 | 3,700 |
| 1/4″ | 106.0 | 6,100 |
| 5/16″ | 210.0 | 12,500 |
1 x 19 Semi Flexible Galvanized
1 x 19 Strand Semi-Flexible: Typically used for push-pull controls or as or where greater strength is required.
MANUFACTURED PER ASTM A475 AND MIL-DTL-87161 WHERE APPLICABLE
| Cable Diameter in inches. |
Weight / Mft. in lbs. |
Minimum Break Strength in lbs. |
|---|---|---|
| 1/32″ | 2.5 | 185 |
| 3/64″ | 5.5 | 375 |
| 1/16″ | 8.5 | 500 |
| 5/64″ | 14.0 | 800 |
| 3/32″ | 20.0 | 1,200 |
| 1/8″ | 35.0 | 2,100 |
| 5/32″ | 55.0 | 3,300 |
| 3/16″ | 77.0 | 4,700 |
| 1/4″ | 135.0 | 8,200 |
| 9/32″ | 170.0 | 9,900 |
| 3/8″ | 300.0 | 18,000 |
1 x 7 Non-Flexible Galvanized
1 x 7 Strand Non-Flexible: Typically used as guy wire or to serve as a strength member for messenger cable.
MANUFACTURED PER ASTM A475 AND MIL-DTL-87161 WHERE APPLICABLE
| Cable Diameter in inches. |
Weight / Mft. in lbs. |
Minimum Break Strength in lbs. |
|---|---|---|
| 1/32″ | 2.5 | 185 |
| 3/64″ | 5.5 | 375 |
| 1/16″ | 8.5 | 500 |
| 3/32″ | 20.0 | 1,200 |
| 3/16″ | 77.0 | 3,990 |
| 1/4″ | 135.0 | 6,450 |
| 5/16″ | 212.0 | 11,200 |
| 3/8″ | 282.0 | 15,400 |
| 7/16″ | 416.0 | 20,800 |
| 1/2″ | 535.0 | 26,900 |
| 9/16″ | 671.0 | 35,000 |
7 x 19 Very Flexible Stainless Steel
7 x 19 Aircraft Cable – Very Flexible: Used when flexibility & fatigue resistance are essential. Commonly used when pulleys are involved in the application.
MANUFACTURED PER FEDERAL SPECIFICATION RR-W-410/ASTM1023
| Cable Diameter in inches. |
Weight / Mft. in lbs. |
Minimum Break Strength in lbs – Type 302/304 |
Minimum Break Strength in lbs – Type 316 |
|---|---|---|---|
| 1/32″ | 4.2 | 270 | x |
| 3/64″ | 1.5 | 115 | x |
| 1/16″ | 7.5 | 480 | x |
| 3/32″ | 17.0 | 920 | X |
| 1/8″ | 29.0 | 1,760 | 1,300 |
| 5/32″ | 45.0 | 2,400 | 2,000 |
| 3/16″ | 65.0 | 3,700 | 2,900 |
| 7/32″ | 86.0 | 5,000 | 3,750 |
| 1/4″ | 110.0 | 6,400 | 4,900 |
| 5/16″ | 173.0 | 9,000 | 7,600 |
| 3/8″ | 243.0 | 12,000 | 11,000 |
7 x 7 Flexible Stainless Steel
7 x 7 Aircraft Cable – Flexible: One of the most common types of cable. Used where extreme flexibility is not necessary. Performs well in a wide range of mechanical applications.
MANUFACTURED PER FEDERAL SPECIFICATION RR-W-410/ASTM1023
| Cable Diameter in inches. |
Weight / Mft. in lbs. |
Minimum Break Strength in lbs – Type 302/304 |
Minimum Break Strength in lbs – Type 316 |
|---|---|---|---|
| 1/32″ | 1.5 | 115 | x |
| 3/64″ | 4.2 | 270 | 200 |
| 1/16″ | 7.5 | 480 | 360 |
| 5/64″ | 11.0 | 650 | 480 |
| 3/32″ | 16.0 | 920 | 700 |
| 1/8″ | 28.5 | 1,700 | 1,360 |
| 5/32″ | 43.0 | 2,400 | 1,800 |
| 3/16″ | 62.0 | 3,700 | 2,750 |
| 1/4″ | 106.0 | 6,100 | X |
1 x 19 Semi Flexible Stainless Steel
1 x 19 Strand Semi-Flexible: Typically used for push-pull controls or as or where greater strength is required.
MANUFACTURED PER ASTM A475 AND MIL-DTL-87161 WHERE APPLICABLE
| Cable Diameter in inches. |
Weight / Mft. in lbs. |
Minimum Break Strength in lbs – Type 302/304 |
Minimum Break Strength in lbs – Type 316 |
|---|---|---|---|
| 1/32″ | 1.9 | 150 | 125 |
| 3/64″ | 5.5 | 375 | 300 |
| 1/16″ | 8.5 | 500 | 400 |
| 5/64″ | 14.0 | 800 | 650 |
| 3/32″ | 20.0 | 1,200 | 980 |
| 1/8″ | 35.0 | 2,100 | 1,780 |
| 5/32″ | 55.0 | 3,300 | 2,800 |
| 3/16″ | 77.0 | 4,700 | 4,000 |
| 7/32″ | 102.0 | 6,300 | 5,350 |
| 1/4″ | 135.0 | 8,200 | 6,900 |
| 5/16″ | 210.0 | 12,500 | 10,600 |
| 3/8″ | 294.0 | 17,500 | 14,800 |
| 7/16″ | 410.0 | 22,500 | 20,000 |
| 1/2″ | 521.0 | 30,000 | 27,000 |
1 x 7 Non-Flexible Stainless Steel
1 x 7 Strand Non-Flexible: Typically used as guy wire or to serve as a strength member for messenger cable.
MANUFACTURED PER ASTM A475 AND MIL-DTL-87161 WHERE APPLICABLE
| Cable Diameter in inches. |
Weight / Mft. in lbs. |
Minimum Break Strength in lbs – Type 302/304 |
Minimum Break Strength in lbs – Type 316 |
|---|---|---|---|
| 1/32″ | 1.9 | 130 | x |
| 3/64″ | 5.5 | 375 | X |
| 1/16″ | 8.5 | 500 | X |
| 5/64″ | 14.0 | 800 | X |
| 3/32″ | 20.0 | 1200 | X |
| 1/8″ | 35.0 | 1830 | X |
6 x 37 Very Flexible Stainless Steel
6 X 37 Very-Flexible Construction is used extensively in heavy-duty hoisting equipment such as cranes and derricks, shovels, skidders, and excavators.
| Cable Diameter in inches. |
Core | Material | Weight / Mft. in lbs. |
Minimum Break Strength in lbs. |
|---|---|---|---|---|
| 7/16″ | IWRC | 302/304 SS | 356.0 | 16,300 |
| 1/2″ | FC | 302/304 SS | 430.0 | 20,500 |
| 1/2″ | IWRC | 302/304 SS | 458.0 | 22,800 |
| 1/2″ | IWRC | 316 SS | 458.0 | 19,300 |
| 9/16″ | IWRC | 302/304 SS | 590.0 | 28,500 |
| 5/8″ | FC | 302/304 SS | 650.0 | 32,000 |
| 5/8″ | IWRC | 302/304 SS | 710.0 | 35,000 |
| 3/4″ | IWRC | 302/304 SS | 922.0 | 49,600 |
6 x 19 Flexible Galvanized
6 x 19 Flexible cable construction is used extensively in logging and oil field operations as well as in lifting equipment.
| Cable Diameter in inches. |
Core | Material | Weight / Mft. in lbs. |
Minimum Break Strength in lbs. |
|---|---|---|---|---|
| 3/16″ | FC | IPS | 60.0 | 3,150 |
| 5/16″ | FC | IPS | 164.0 | 8,520 |
| 3/8″ | FC | IPS | 236.0 | 12,200 |
| 3/8″ | IWRC | EIPS | 260.0 | 15,100 |
| 7/16″ | IWRC | EIPS | 350.0 | 20,400 |
| 1/2″ | FC | IPS | 420.0 | 21,400 |
| 1/2″ | IWRC | EIPS | 460.0 | 26,600 |
| 5/8″ | IWRC | EIPS | 660.0 | 41,200 |
| 3/4″ | FC | IPS | 950.0 | 47,600 |
| 3/4″ | IWRC | EIPS | 1,040.0 | 58,800 |
| 7/8″ | IWRC | IPS | 1,420.0 | 69,200 |
| 1″ | IWRC | IPS | 1,850.0 | 89,800 |
6 x 37 Very Flexible Galvanized
6 X 37 Very-Flexible Construction is used extensively in heavy-duty hoisting equipment such as cranes and derricks, shovels, skidders, and excavators.
| Cable Diameter in inches. |
Core | Material | Weight / Mft. in lbs. |
Minimum Break Strength in lbs. |
|---|---|---|---|---|
| 1/4″ | FC | IPS | 105.0 | 5,180 |
| 1/4″ | IWRC | EIPS | 116.0 | 5,560 |
| 5/16″ | FC | IPS | 164.0 | 8,080 |
| 5/16″ | IWRC | EIPS | 180.0 | 8,660 |
| 3/8″ | FC | IPS | 236.0 | 12,200 |
| 3/8″ | IWRC | EIPS | 260.0 | 15,100 |
| 7/16″ | IWRC | EIPS | 350.0 | 19,340 |
| 1/2″ | FC | IPS | 420.0 | 20,400 |
| 1/2″ | IWRC | EIPS | 460.0 | 25,200 |
| 5/8″ | FC | IPS | 660.0 | 31,600 |
| 5/8″ | IWRC | EIPS | 720.0 | 39,200 |
| 3/4″ | IWRC | IPS | 1,040.0 | 48,600 |
| 7/8″ | IWRC | IPS | 1,420.0 | 65,800 |
| 1 | IWRC | IPS | 1,850.0 | 85,600 |

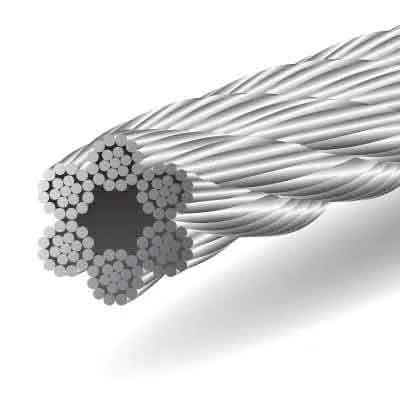

6 x 19 Flexible Stainless Steel
6 x 19 stainless steel wire rope is a general-purpose steel wire rope that is perfectly designed for many industries such as dredging, excavating, logging, and many marine environments. Uses of this product include heavy-duty guard rails, & mooring lines.
| Cable Diameter in inches. |
Core | Material | Weight / Mft. in lbs. |
Minimum Break Strength in lbs. |
|---|---|---|---|---|
| 1/4″ | IWRC | 302/304 SS | 100.0 | 5,400 |
| 7/16″ | IWRC | 302/304 SS | 356.0 | 16,300 |
| 1/2″ | FC | 302/304 SS | 430.0 | 20,500 |
| 1/2″ | IWRC | 302/304 SS | 458.0 | 22,800 |
| 1/2″ | IWRC | 316 SS | 458.0 | 19,300 |
| 9/16″ | IWRC | 302/304 SS | 590.0 | 28,500 |
| 5/8″ | FC | 302/304 SS | 650.0 | 32,000 |
| 5/8″ | IWRC | 302/304 SS | 710.0 | 35,000 |
| 3/4″ | IWRC | 302/304 SS | 922.0 | 49,600 |
