Columbia HL Series Winch 15,000 Lbs

The HL Series hoists deliver high lifting capacity in a compact package. Specific models are rated to lift up to 15,000 pounds on a single line, and reach maximum speeds up to 25 feet per minute on the full drum.

Options include AutoAdvance Line Spoolers, Hammerhead Trolleys, cable tensioners and a variety of electric control options. HL Series hoists can be customized to meet the exact needs of any application.

Features

  • Designed to meet ANSI B30.7 specifications
  • Rated for vertical lifting
  • Spring applied, electrically released brakes
  • Totally enclosed geartrain
  • Severe-duty motors
  • Motors can be rotated in 90º increments
  • Simple four bolt base-mount installation
Drum

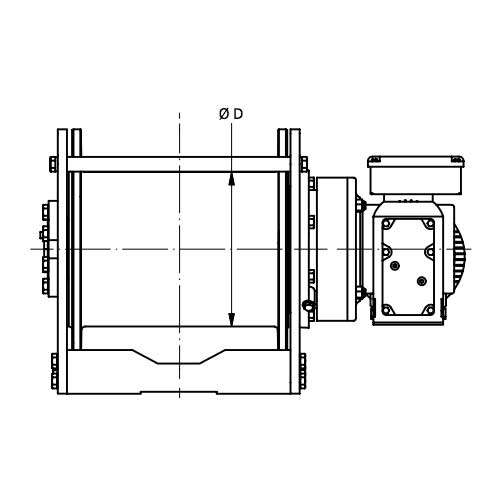

Size		 A B C D E F
-02 28.8″ 31.8″ 17.9″ 9.8″ 16.4″ 13.8″
-04 29.5″ 39.3″ 22.0″ 10.6″ 20.0″ 13.5″
-05 30.6″ 35.6 18.0″ 10.6″ 16.5″ 13.8″
Drum
Size		 1/2″
Capacity		 9/16″
Capacity		 5/8″
Capacity
-02 547′ 399′ 368′
-04 957′ 756′ 589′
-05 470′ 427′ 300′

Typical dimensions shown; gear motors can be rotated in 90º increments.

Model Motor
HP		 Typical
Weight
(Lbs)		 First
Layer
Lbs		 First
Layer
FPM
HL6000 (1) 3.0 482 6,000 15
HL9000 (1) 3.0 482 9,000 10
HL12000 (1) 3.0 500 12,000 7
HL12000 (1) 5.0 500 12,000 13
HL12000 (2) 7.5 579 12,000 17
HL15000 (2) 3.0 520 15,000 6
HL15000 (2) 5.0 528 15,000 11
HL15000 (2) 7.5 579 15,000 15



Model Mean
Drum
Lbs		 Mean
Drum
FPM		 Full
Drum
Lbs		 Full
Drum
FPM
HL6000 (1) 5,200 18 4,450 21
HL9000 (1) 7,700 12 6,600 14
HL12000 (1) 10,200 9 8,700 10
HL12000 (1) 9,600 16 8,200 18
HL12000 (2) 9,600 01 7,900 29
HL15000 (2) 10,400 5 8,600 10
HL15000 (2) 11,400 14 9,400 17
HL15000 (2) 11,000 21 9,100 25

(1) -02 Drum  |  (2) -04 and -05 drums | Performance based on 230/460 3ø 60 Hz input power; other voltages available.
