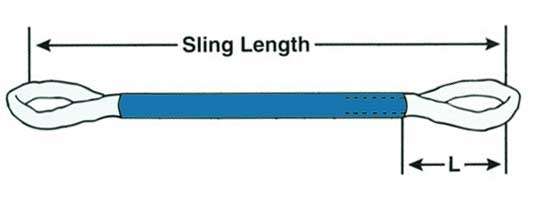

Eye & Eye Advantages:
Eye and Eye slings have a black, abrasion resistant nylon covering the length of the sling body, providing extra durability to this area.
Features:
- Color coded eyes to match capacities
- Red core warning yarns
- Double wall cover
- Durable tag for identification
- Low percentage stretch
POLYESTER EYE & EYE (UE)
| Code | Color | Capacity in Lbs. | ||
|---|---|---|---|---|
| Vertical | Choker | Basket | ||
| FTE 1 | Purple | 2,600 | 2,100 | 5,200 |
| FTE 2 | Green | 5,300 | 4,200 | 10,600 |
| FTE 3 | Yellow | 8,400 | 6,700 | 16,800 |
| FTE 4 | Tan | 10,600 | 8,500 | 21,200 |
| FTE 5 | Red | 13,200 | 10,600 | 26,400 |
| FTE 6 | White | 16,800 | 13,400 | 33,600 |
| FTE 7 | Blue | 21,200 | 17,000 | 42,400 |
Larger slings available upon request.
| Code | Color | Minimum Length |
Weight Lb/Ft |
Body Diam Relaxed |
Width At Load |
|---|---|---|---|---|---|
| FTE 1 | Purple | 4 ft. | .25 | 2 1/4″ | 10″ |
| FTE 2 | Green | 4 ft. | .36 | 2 1/2″ | 10″ |
| FTE 3 | Yellow | 4 ft. | .5 | 2 1/2″ | 12″ |
| FTE 4 | Tan | 5 ft. | .6 | 3 1/2″ | 12″ |
| FTE 5 | Red | 5 ft. | .84 | 3 1/2″ | 14″ |
| FTE 6 | White | 7 ft. | .96 | 3 1/2″ | 16″ |
| FTE 7 | Blue | 7 ft. | 1.45 | 4 1/4″ | 16″ |
Larger slings available upon request.
