Features
- Fall Protection Rated at 400 lbs.
- Fast and easy width adjustments
- Built-in width adjustment indicator
- Universal wheel tread fits most I, S, and W-Beams
- Premium double-sealed ball bearings
- ROHS compliant zinc plated finish
- Anti-drop plates
- Glow in the dark decals
- Ships fully assembled
- Made in USA
Standards
This product meets or exceeds OSHA 1926 Subpart M, OSHA 1910, ASME Z359.1-2007, and ASME A10.32-2012 standards for fall protection.
| Model # | Safe Working Load (lbs) |
Fall Protection* (lbs) |
Adj Flange Width (in) |
Max Flange Thickness (in) |

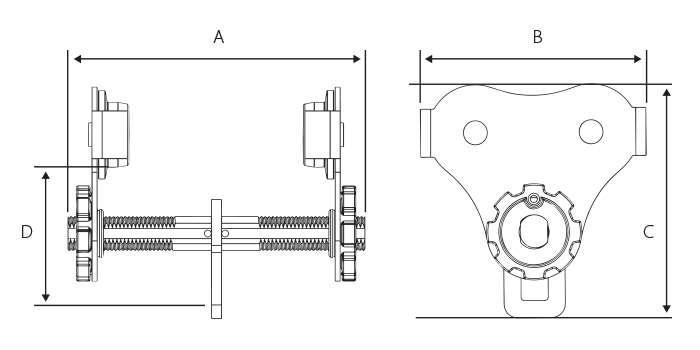

A | B | C | D | Min Radius Curve (ft) |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| OZ05PBTA-MR | 1,000 | 400 | 2.75-8.00 | 1.12 | 11 | 8.30 | 8.50 | 5.00 | 2.75 | 16 |
| OZ1PBTA-MR | 2,000 | 400 | 2.75-8.00 | 1 | 11 | 10.20 | 9.80 | 5.50 | 3.35 | 26 |

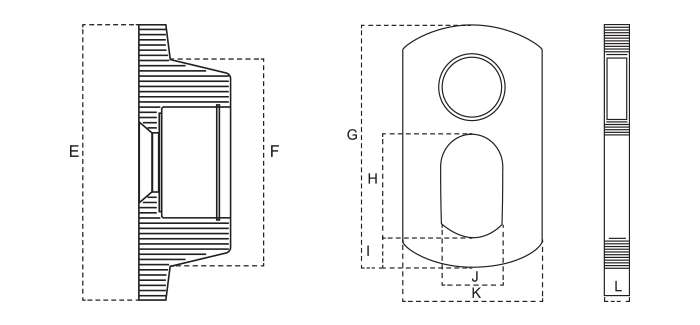

*12″ and 16″ flange widths available for OZ05PBTAMR and OZ1PBTAMR *See wheel and bail dimensions below. *Dimensions are for reference only and subject to change without notice.
| Wheel Dimensions | E | F |
|---|---|---|
| OZ05PBTA-MR | 3.25 | 2.38 |
| OZ1PBTA-MR | 4.00 | 3.00 |
| Wheel Dimensions | G | H | I | J | K | L |
|---|---|---|---|---|---|---|
| OZ05PBTA-MR | 3.94 | 1.50 | 0.59 | 0.95 | 1.97 | 0.40 |
| OZ1PBTA-MR | 4.65 | 1.97 | 0.60 | 1.21 | 2.68 | 0.48 |
