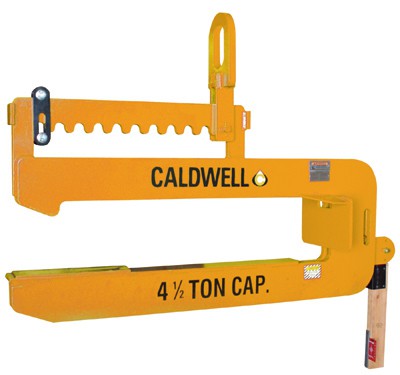

PRODUCT FEATURES
- Stand-up leveling bail adjusts for varying pipe lengths
- Adjustable bail stop makes repetitive lifts easy to handle
- Pipe stop helps drive the pipe into position
- Built-in laser target holder allows operator to set & laser position at the same time
- Positioning handle
- Complies with ASME standards
Operation

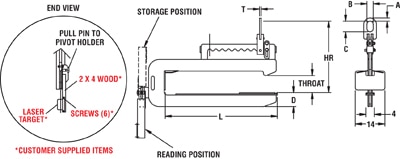

| Model # | Capacity (lbs) | Dimensions (in) | Bail Dimensions (in) | Weight (lbs) |
|---|---|---|---|---|
| CPL-1.5 | 3000 | 33.8 | 0.75 | 300 |
| CPL-3 | 6000 | 35.63 | 1 | 500 |
| CPL-4.5 | 9000 | 37.31 | 1.25 | 700 |
| CPL-6 | 12000 | 39.25 | 1.25 | 750 |
| CPL-9 | 18000 | 41.63 | 1.25 | 1100 |
| CPL-15 | 30000 | 48.12 | 1.5 | 1550 |
