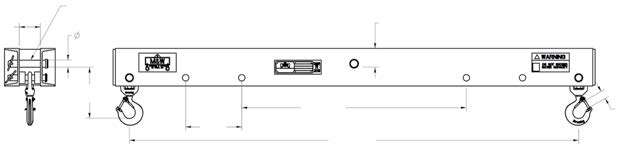

ULTRA LOW HEADROOM LIFTING BEAMS

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Lifting Beams proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Use provided spacers to assure hook remains centered.
  • Made in U.S.A.
  • Custom designs available – call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.
  • Beams supplied standard with alloy swivel latch hook connections.
Part #
Headroom
Weight		 Pick Points — Outside Length (L) in Feet
2-4
Ft.		 4-6
Ft.		 6-8
Ft.		 8-10
Ft.		 10-12
Ft.
Part Number
HR=
E=
Weight		 16484
5.5
1.94
57		 16485
5.5
1.94
82		 16486
5.5
1.94
100		 16487
5.5
1.94
120		 16488
5.5
1.94
145
Part Number
HR=
E=
Weight		 16489
5.5
2.00
60		 16490
5.5
2.00
85		 16491
6.5
2.00
175		 16492
6.5
2.00
215		 16493
6.5
2.00
250
Part Number
HR=
E=
Weight		 16494
6.7
2.13
110		 16495
6.7
2.13
150		 16496
7.1
2.75
210		 16497
7.1
2.75
310		 16498
7.9
3.00
345
Part Number
HR=
E=
Weight		 16499
6.9
2.51
125		 16500
7.6
2.76
185		 16501
8.6
2.76
255		 16502
9.6
2.76
300		 16503
9.6
2.76
400
Part Number
HR=
E=
Weight		 16504
9.8
3.25
240		 16505
9.8
3.25
320		 16506
9.8
3.25
400		 16507
10.3
3.75
490		 16508
10.3
3.75
695
WLL in Lbs* A B D
1,000 2.25 0.63 0.86
2,000 2.25 0.75 0.86
4,000 2.25 1.00 0.89
6,000 3.00 1.25 0.96
10,000 3.00 1.50 1.08

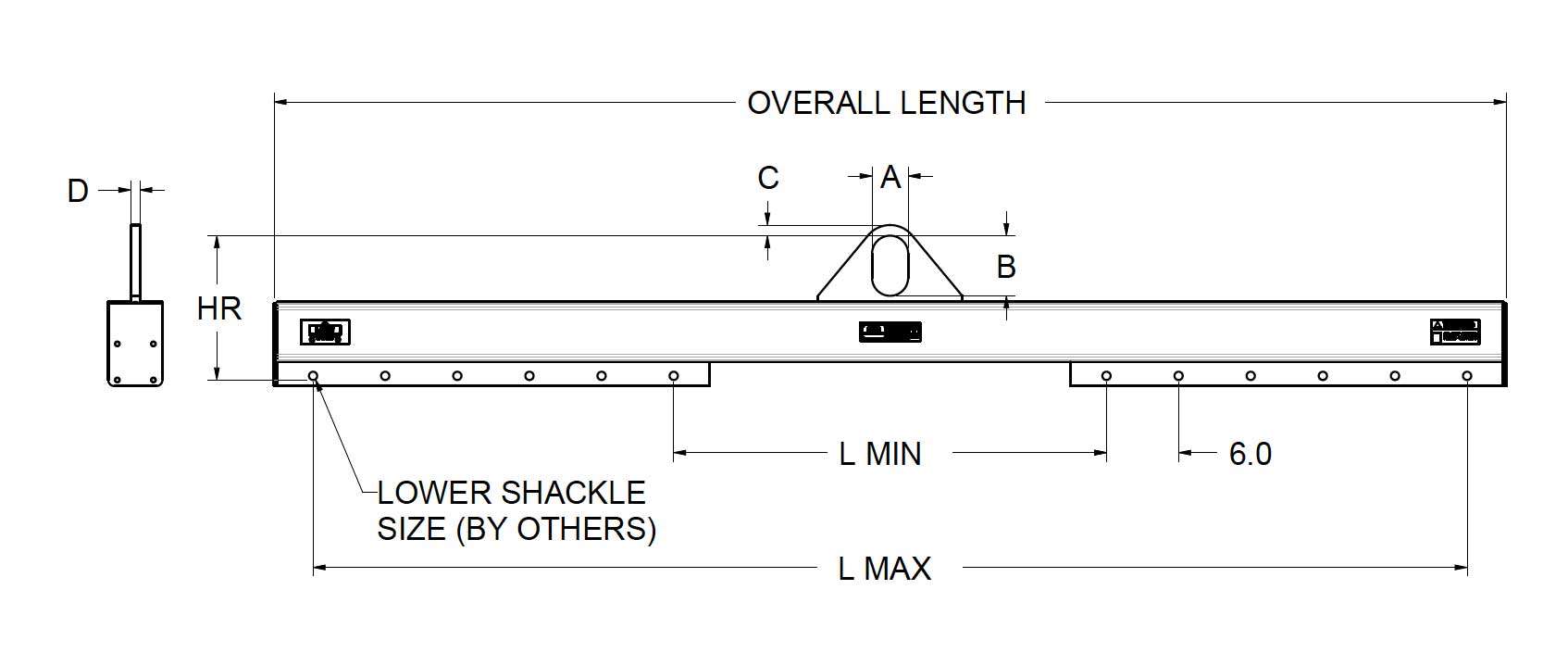

Low Headroom Adjustable

Part # L
Min/Max
(1’ Spread
Adj.)		 Overall
Length		 WLL I
n Lbs*		 Lower
Shackle
Size		 Weight
Lbs.
22148 3’ – 5’ 66.5 2,000 1/2” 140
22149 5’ – 10’ 126.5 2,000 1/2” 255
22150 10’ – 15’ 186.5 2,000 1/2” 578
22151 15’ – 20’ 246.5 2,000 1/2” 575
22152 3’ – 5’ 66.5 4,000 1/2” 145
22153 5’ – 10’ 126.5 4,000 1/2” 346
22154 10’ – 15’ 186.5 4,000 1/2” 864
22155 15’ – 20’ 246.5 4,000 1/2” 1,115
22156 3’ – 5’ 66.5 6,000 5/8” 217
22157 5’ – 10’ 126.5 6,000 5/8” 385
22158 10’ – 15’ 186.5 6,000 5/8” 1,062
22159  15’ – 20’ 246.5 6,000 5/8” 1,365
22160  3’ – 5’ 66.5 10,000 7/8” 348
22161 10’ – 15’ 126.5 10,000 7/8” 608
22162 10’ – 15’ 186.5 10,000 7/8” 1,123
22163 15’ – 20’ 246.5 10,000 7/8” 1,426
22164 3’ – 5’ 66.5 15,000  7/8” 348
22165 5’ – 10’ 126.5 15,000 7/8” 810
22166 10’ – 15’ 186.5 15,000 7/8” 1,237
22167 15’ – 20’ 246.5 15,000 7/8” 1,577
22168 3’ – 5’ 66.5 20,000 7/8” 348
22169 5’ – 10’ 126.5 20,000 7/8” 815
22170 10’ – 15’ 186.5 20,000 7/8” 1,248
22171 15’ – 20’ 247  20,000 7/8” 2,055
22172 3’ – 5’ 67 40,000 1 1/4” 706
22173 5’ – 10’ 127 40,000 1 1/4” 1,574
22174 10’ – 15’ 187  40,000 1 1/4” 2,098
22175 15’ – 20’ 247 40,000 1 1/4” 2,643
22176 3’ – 5’ 67 60,000 1 1/2” 1,023
22177 5’ – 10’ 127 60,000 1 1/2” 1,574
22178 10’ – 15’ 187 60,000 1 1/2” 2,389
22179 15’ – 20’ 247 60,000 1 1/2” 3,058
22180 3’ – 5’ 67 80,000 1 3/4” 1,443
22181 5’ – 10’ 127 80,000 1 3/4” 2,248
22182 10’ – 15’ 187 80,000 1 3/4” 2,763
22183 15’ – 20’  187 80,000 1 3/4” 3,761
Part # A B C D HR
22148 3 5 0.88 0.75 12
22149 3 5 0.88 0.75 12
22150  3 5 0.88 0.75 14
22151 3 5 0.88 0.75 14
22152 3 5 0.88 0.75 12
22153 3 5 0.88 0.75 13
22154 3 5 0.88 0.75 17
22155 3 5 0.88 0.75 17
22156 3 5 1.25 1 13.75
22157 3 5 1.25 1 15.75
22158 3 5 1.25 1 17.75
22159 3 5 1.25 1 17.75
22160  4 7 2 1.25 19.62
22161 4 7 2 1.25 19.62
22162 4 7 2 1.25 21.62
22163 4 7 2 1.25 21.62
22164 4 7 2 1.25 19.62
22165 4 7 2 1.25 19.62
22166 4 7 2 1.25 24.62
22167 4 7 2 1.25 24.62
22168 4 7 2 1.25 19.62
22169 4 7 2 1.25 24.62
22170 4 7 2 1.25 24.62
22171 4 7 2 1.25 23.2
22172 5 9 2.5 1.5 26.2
22173 5 9 2.5 1.5 26.2
22174 5 9 2.5 1.5 27.9
22175 5 9 2.5 1.5 27.9
22176 7 16 3.5 2 36
22177 7 16 3.5 2 36
22178 7 16 3.5  2 37.8
22179 7 16 3.5 2 45
22180 7 16 3.5 2.5 39.5
22181 7 16 3.5 2.5 39.5
22182 7 16 3.5 2.5 39.5
22183 7 16 3.5 2.5 39.5

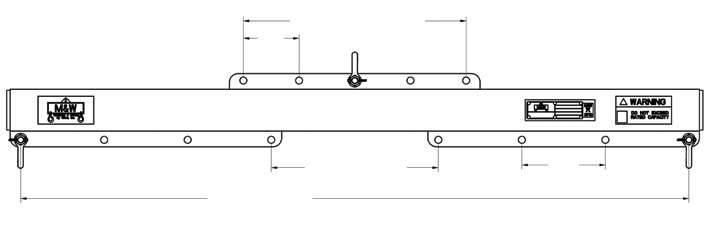

ADJUSTABLE ECONOMY LIFTING BEAMS

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Lifting Beams proof loaded and shipped with certification paperwork.
  • >Durable construction ideally suited to jobsite or warehouse use.
  • Quick and easy adjustment of unbalanced loads.
  • Ideally suited to low headroom applications.
  • Shackle bottoms standard for rigging connections.
  • Swivel hooks, eye hooks and custom connections available – call for ordering assistance.
  • Made in U.S.A.
  • Custom designs available – call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.
  • Beams supplied standard with shackle connections.

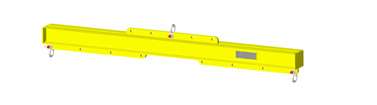

Shown with Optional Top Ring & Hooks

Shown with Optional Top Ring & Hooks

Part # WLL
in Lbs		 Max
Spread		 Min
Spread		 Bail
Adj
13855 500 48 12 16
13862 500 72 36 16
13866 500 96  60 16
13878 1,000 48 12 16
13879 1,000 72  36 16
13869 1,000 96  60 24
13880 2,000  48  12 16
13886 2,000  72 36 24
13889 2,000  96  60 24
13893 2,000  120  84 24
13924 4,000  48 12 16
13933 4,000  72  36 24
13938 4,000 96 60 24
14130 4,000 120 84 24
14134 8,000  72  24 32
14150 8,000  96 48 32
14154 8,000 120  72 32
14159 10,000  96 36 32
14162 10,000 120 60 32
14167 10,000  144  84 32
14171 14,000 120 48 32
14177 14,000  144  72 32
14182 14,000 168  96 32
21449 20,000 120  48 32
21450 20,000 144  72 32
21451 20,000 168  96 32
Part # HR Weight
in Lbs		 Top
Shackle
Size		 Bottom
Size
13855 7.57 45 3/8” 3/8”
13862 7.57 60 3/8” 3/8”
13866 7.57 75 3/8” 3/8”
13878 7.57 45 3/8” 3/8”
13879 7.57 60 3/8” 3/8”
13869 8.57 95 3/8” 3/8”
13880 8.57 60 3/8” 3/8″
13886 9.57 80 3/8” 3/8”
13889 9.57 150 3/8” 3/8”
13893 9.57 180 3/8” 3/8”
13924 9.48 65 1/2” 7/16”
13933 10.48 125 1/2” 7/16”
13938 11.48 240 1/2” 7/16”
14130 11.48 295 1/2” 7/16”
14134 15.12 175 3/4” 5/8”
14150 16.12 280 3/4” 5/8”
14154 16.12 435 3/4” 5/8”
14159 16.12 365 3/4” 5/8”
14162 17.12 465 3/4” 5/8”
14167 18.12 675 3/4” 5/8”
14171 19.42 610 7/8” 3/4”
14177 21.42 715 7/8” 3/4”
14182 21.42 965 7/8” 3/4”
21449 26 900 1 1/8” 7/8”
21450 29 1120 1 1/8” 7/8”
21451 29 1250 1 1/8” 7/8”
