CM MALLEABLE WIRE ROPE CLIPS – GALVANIZED

  • For light duty non-critical applications only.
  • Precision manufactured and galvanized to meet or exceed the performance requirement of Federal Specifications
    (FF-C-450 Type 1 Class 2).
  • Imported
wire rope clips

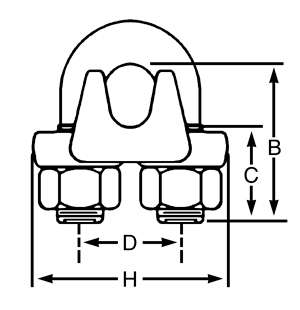

wire rope clips measurements

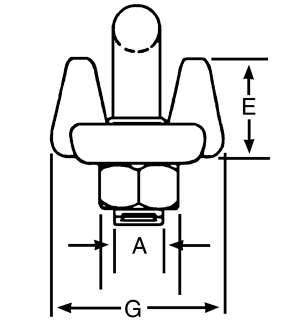

wire rope clips dimensions

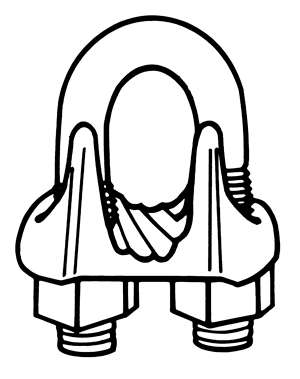

wire rope clips drawing
Size
 Prod
Code		 UPC
43927-		 A B C D E G H
1/16 D86980 29365 10-24* 11/16 1/2 3/8 5/16 7/16 7/8
1/8 D86090 29370 10-24* 13/16 1/2 1/2 7/16 1/2 15/16
3/16 D86190 25378 1/4 31/32 5/8 9/16 1/2  9/16 11/16
1/4 D86290 34751 5/16 1 7/32 7/8 11/16 5/8 11/16 1 3/8
5/16 D86390 29371 5/16 1 7/32 7/8 11/16  11/16 11/16 1 3/8
3/8 D86490 29372 3/8 1 5/8 1 7/8 13/16 7/8 1 5/8
7/16 D86590 29373 3/8 1 5/8 1 7/8 13/16 15/16 1 5/8
1/2 D86690 30077 7/16 2 1 1/4 1 11/16 1 1 7/8
9/16 D86790 30078 1/2 2 5/16 1 15/32 13/16 13/16 1 1/8 2 3/16
5/8 D86890 30079 1/2 2 5/16 1 15/32 13/16 15/16 1 1/8 2 3/16
3/4 D86900 34749 9/16 2 9/16  1 3/4 1 11/32 1 1/2 1 1/4 2 7/16
Size
 Prod
Code		 UPC
43927-		 Std
Pack		 Min #
Clips*		 Rope
Turnback		 Torque
ft/lbs		 Weight
per 100 lbs
1/16 D86980 29365 100 3 4 2 3
1/8 D86090 29370 100 3 5 3 5
3/16 D86190 25378 100 3 6 5 8
1/4 D86290 34751 100 3 7 15 12
5/16 D86390 29371 100 3 8 15 15
3/8 D86490 29372 100 3 10 30 21
7/16 D86590 29373 150 4 10 40 25
1/2 D86690 30077 150 4 15 45 38
9/16 D86790 30078  150 4 16 50 41
5/8 D86890 30079 125 4 16 75  53
3/4 D86900 34749  125 5 22 75 76

*UNC 2-4 Threads

CM Big Orange Mid-Grip clips (double saddle)

  • Big Orange Mid-Grip wire rope clips meet Federal Specifications FF-C-450, Type III, Class 1, and will provide maximum holding strength when installed and used according to specifications.
  • Double grip, double saddle wire rope clips allow full arc wrench swing for quicker installation, retightening or disassembly of nuts.
  • Unlike U-bolt type rope clips, Mid-Grip clips cannot be installed ­incorrectly with the saddle not on the live rope end.
  • Forged from special bar quality steel with the sizes clearly marked on the saddles.
  • Hot galvanized with galvanized heavy hex nuts. When properly used, Big Orange Mid-Grip clips will give terminal efficiency ratings of approximately 80% of the catalog nominal strengths of new wire rope.
  • Furnished unassembled in poly bags and in factory packs of 20.
Size
 Prod
Code		 UPC
43927-		 A B C D Thd F G L M N
3/16 M2246 42462 .28 1.25 .34 1.94 3/8-16 1.50 1.28 1.56 1.69 1.28
1/4 M2246 42462 .28 1.25 .34 1.94 3/8-16 1.50 1.28  1.56  1.69 1.28
5/16  M2247 42466 .34 1.38 .44 1.06 3/8-16 1.63 1.47 1.81 1.69 1.41
3/8 M2248  42470 .41  1.56  .50 1.06 7/16-14 1.75 1.81 2.31 1.75 1.85
7/16 M2250 42474 .50  1.78 .56 1.25 1/2-13 1.00 2.19 2.75 1.88 2.06
1/2 M2250 42474 .50 1.78 .56 1.25 1/2-13  1.00 2.19 2.75 1.88 2.06
9/16 M2251 42478 .66 2.25  .69 1.50 5/8-11 1.25 2.69 3.31 1.06 2.59
5/8 M2251 42478 .66  2.25  .69 1.50  5/8-11 1.25 2.69 3.31 1.06  2.59
3/4 M2252 42483 .81 2.69 .88 1.81 3/4-10 1.50 2.94 3.44 1.25  3.06
Size
 Prod
Code		 UPC
43927-		 Min #
Clips*		 Rope
Turnback		 Torque
ft/lbs		 Weight
per 100 lbs
3/16 M2246 42462 2 4 30 21
1/4 M2246 42462 2 4 30 21
5/16  M2247 42466 2 5 30 27
3/8 M2248  42470 2 5 1/4 45 45
7/16 M2250 42474 2 6 1/2 65 65
1/2 M2250 42474 3 11 65 65
9/16 M2251 42478 3 12 3/4 130 113
5/8 M2251 42478 3 13 1/2 130 113
3/4 M2252 42483  3 16 225 170

*The tightening torque values shown are based upon the threads being clean, dry and free of lubrication.
