Features

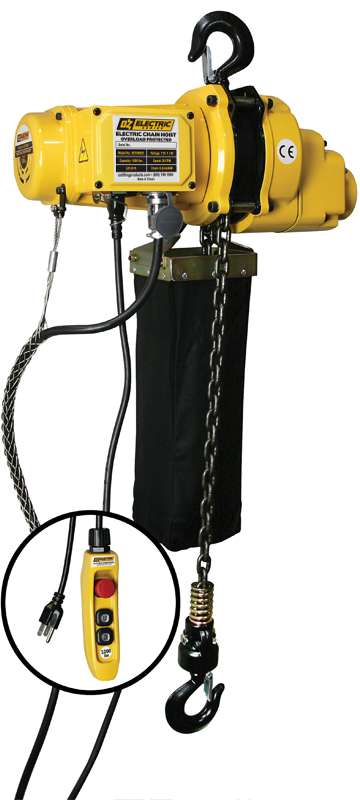

Overload Protection – High performance friction clutch that is integrated with the load brake. This device is designed to prevent overloading the hoist. Hook – Forged carbon steel load hook with a heavy duty latch. Bottom hook features a thrust bearing to allow 360° rotation to prevent twisting of load chain. Top hook is rigid. Load Sheave – Provides better distribution of the load and smooth lifting with reduced vibration and wear. Gearing – Precision machined gears heat treated for strength and durability. Oil bath lubrication on all bearing rotating points for a quieter, smoother and cooler operation. Braking – Dual braking system combines mechanical plus regenerative braking for instant and safe operation. Chain – Grade 80 alloy steel designed and manufactured in Japan for long and dependable service life. H3 Duty Class – 30% duty cycle for operation in various applications. 110V Power – 115/1/60 – Standard power making it easy to use virtually anywhere. Pendant Controls – IP64 ergonomic pendant design for operator comfort. Lift and lower load easily with integrated emergency stop. Compact Aluminum Body – Compact and lightweight cast aluminum alloy body making it perfect for many work station applications. Chain Bag – Durable vinyl bag comes standard.

Model # Voltage Cap
(lbs)		 Falls
of
Chain		 Speed
(FPM)		 Motor
OZ500EC 115 / 1 /60 500 1 12.5 .25 HP
OZ1000EC 115 / 1 /60 1000 1 20 1.8 HP
OZ2000EC 115 / 1 /60 2000 1 13 2.4 HP
OZ4000EC 115 / 1 /60 4000 2 6.5 2.4 HP
Model # Standard
Lift (ft)		 Duty
Cycle
(min)		 Pendant
Length
(ft)		 Power
Cord
(ft)		 Net
Wt.
(lbs)
OZ500EC 20 15 (25%) 15 15 18
OZ1000EC 20 18 (30%) 19 15 53
OZ2000EC 10 18 (30%) 19 15 59
OZ4000EC 10 18 (30%) 19 15 84

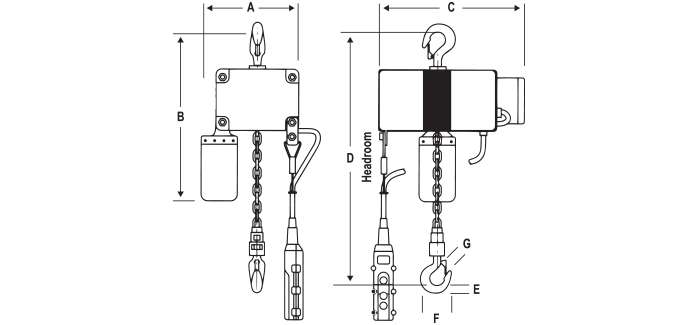

Model # A
(in)		 B
(in)		 C
(in)		 D
(in)		 E
(in)		 F
(in)		 G
(in)
OZ500EC 5 15 9.5 11 0.6 2.5 0.75
OZ1000EC 6.69 27 17.72 16.93 1.02 3.62 0.87
OZ2000EC 8.27 28 20.08 18.90 1.14 3.90 1.22
OZ4000EC 10.63 30 20.08 24.40 1.61 5 1.5
