Pocket sized swage tool

LOCOLOC® No. 000-WCI Hand Swage Tool

Small, compact swage tool can be carried in your pocket. Swages 1/32″, 3/64″, and 1/16″ oval and stop sleeves. Has built in cable cutter. Packaged in plastic pouch. 9″ long, wt. 12 oz.

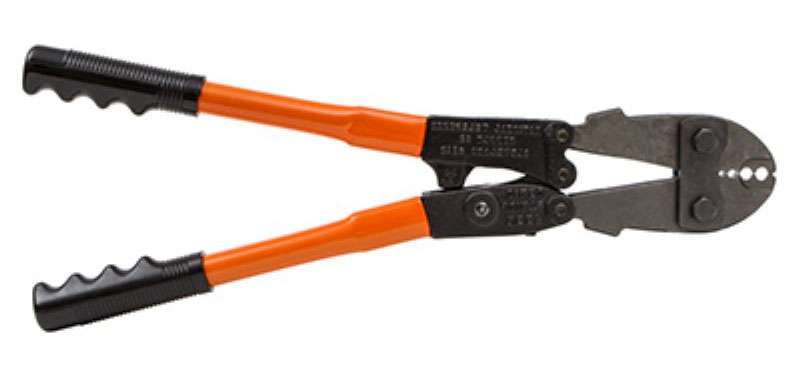

medium size swage tool

LOCOLOC® No. 0-SC Hand Swage Tool

Single compression die for oval and stop sleeve swaging.

  • No. 0-3164SC – swages 3/64″ oval and stop sleeves, plus 3/64″ and 1/16″ stainless steel oval sleeves.
  • No. 0-1/16SC – swages 1/16″ oval and stop sleeves, plus 3/32″ stainless steel oval sleeves.
  • No. 0-3132SC – swages 3/32″ oval and 3/32″, 1/8″ stop sleeves, plus 1/8″ stainless steel oval sleeves.
  • No. 0-1/8SC – swages 1/8″ oval and 5/32″, 3/16″, 7/32″ stop sleeves.
  • No. 0-5132SC – swages 5/32″ oval sleeves.
  • No. 03-16SC – swages 3/16″ oval sleeves. All No. 0-SC tools – 20″ long, wt. 4.2 lbs.

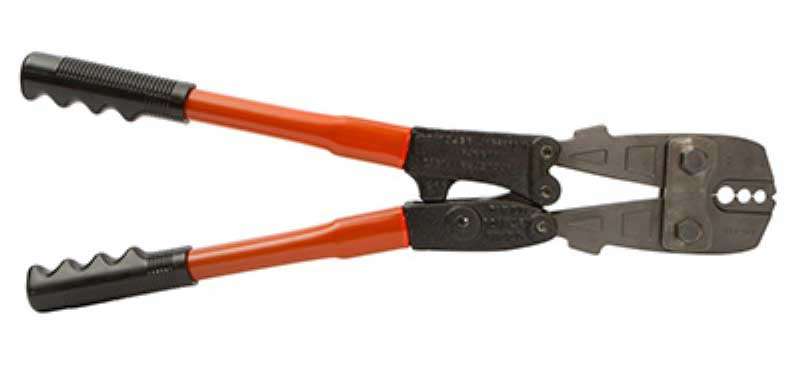

large swage tool with cable cutter

LOCOLOC® No. 1-SC Hand Swager

Multi-compression hand swage tool with cable cutter. Swages 1/16″, 3/32″, 1/8″, 5/32″ and 3/16″ oval and stop sleeves, plus 7/32″ stop sleeves, total of 11 sizes plus the ability to cut up to 7/32″ diameter aircraft quality steel cable. A tool with a dozen functions! 26″ long, wt. 6.5 lbs.

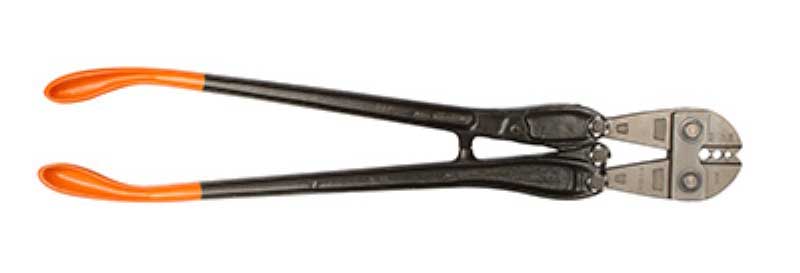

oval and stop swage tool

LOCOLOC® No. 0 Hand Swagers

Single compression die for oval and stop sleeve swag-ing.

  • No. 07/32 – swages 7/32″ oval sleeves.
  • No. 0-1/4 – swages 1/4″ oval and 1/4″, 9/32″, 5/16″ stop sleeves.
  • No. 0-9/32 – swages 9/32″ oval sleeves.
  • No. 0-5/16 – swages 5/16″ oval sleeves.All No. 0 tools – 28″ long, wt. 5 lbs.
hudraulic swage tool

LOCOLOC No. 3 Hand Swage Tool

Exerts 14 tons pressure. A few strokes of handle brings the dies from wide open to contact with the fitting to be swaged. Then an internal valve automatically shifts from the low pressure pump stage to the high pressure compression stage. relief valve prevents over-compression.

The advanced-retract control for the ram is located in the moveable handle. It is operated by twisting the handle less than a 1/4 turn.

Full visibility of the working area is afforded by the narrow, 180 degree swivel “C” head, making it easy to position the dies on the fitting.

Very rugged, yet portable, this hydraulic hand swaging press with interchangeable dies is for compressing al-uminum or copper oval sleeves on 1/4″, 9/32,5/16″, 3/8″, 7/16″ and 1/2″ diameter cable and wire rope, plus aluminum or copper stop sleeves on 1/4″, 9/32″ and 5/16″ diameter cable and wire rope. Gauge supplied with each die.

#3 LOCOLOC® Hand Swager is 24″ long, weighs 15 lbs, Dies weigh 1 lb. each, and comes with steel carrying box. Available in complete kit, No. 3-K.
