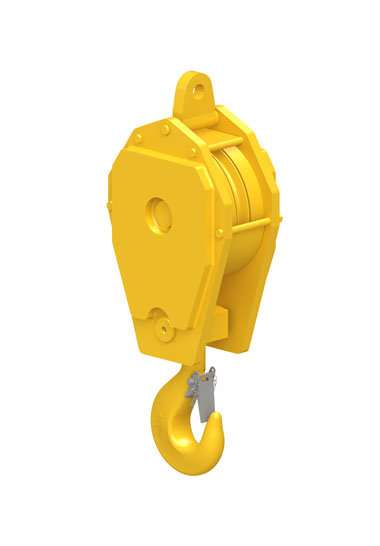

Blocks shown in this section may be used on a wide variety of land based cranes such as mobile and crawler cranes. Standard Reeve Blocks are an excellent choice where frequent easy block change is not a required main feature, or lifting height is limited:
- Double sealed maintenance free roller bearings
- Design Factor of Safety of 4:1
- Forged high tensile steel DIN hooks
- Sheaves featuring graphite lubricated groove
- High impact resistant side plates
- Operational temperature range: -40 up to +80°C / -40 up to +176°F
- Lubrication on hook suspension
- Short design for increased lifting height
- Safety latch with locking pin
- C3M finish in signal yellow
| Model # | WLL US Tons |
For Wire ød (inch) |
Hook Size |
Weight (lbs) |
|---|---|---|---|---|
| SRB 225.xx.1.12,5.E | 13.7 | 3/8 – 9/16 | 5 | 165 |
| SRB 260.xx.1.12,5.E | 13.7 | 7/16 – 5/8 | 5 | 240 |
| SRB 225.xx.1.16.E | 17.6 | 3/8 – 9/16 | 6 | 220 |
| SRB 260.xx.1.16.E | 17.6 | 7/16 – 5/8 | 6 | 240 |
| SRB 285.xx.1.16.E | 17.6 | 1/2 – 3/4 | 6 | 350 |
| SRB 320.xx.1.16.E | 17.6 | 9/16 – 3/4 | 6 | 350 |
| SRB 355.xx.1.16.E | 17.6 | 9/16 – 7/8 | 6 | 400 |
| SRB 320.xx.1.20.E | 22 | 9/16 – 3/4 | 8 | 350 |
| SRB 355.xx.1.20.E | 22 | 9/16 – 7/8 | 8 | 550 |
| SRB 450.xx.1.25.E | 27.5 | 3/4 – 1 1/8 | 8 | 435 |
| SRB 528.xx.1.28.E | 30 | 7/8 – 1 1/4 | 8 | 600 |
| SRB 400.xx.1.29.E | 32 | 5/8 – 1 | 8 | 640 |
| SRB 450.xx.1.32.E | 35 | 3/4 – 1 1/8 | 10 | 1100 |
| SRB 528.xx.1.32.E | 35 | 7/8 – 1 1/4 | 10 | 1100 | 1400 | 2000 |
| SRB 450.xx.1.40.E | 45 | 3/4 – 1 1/8 | 12 | 1300 |
| SRB 450.xx.1.50.E | 55 | 3/4 – 1 1/8 | 12 | 1300 |
| SRB 528.xx.1.50.E | 55 | 7/8 – 1 1/4 | 12 | 1650 |
| SRB 575.xx.1.50.E | 55 | 15/16 – 1 1/4 | 12 | 2045 |
| SRB 630.xx.1.64.E | 70 | 1 – 1 3/8 | 16 | 2200 |
| SRB 670.xx.1.64.E | 70 | 1 – 1 1/2 | 16 | 3000 |

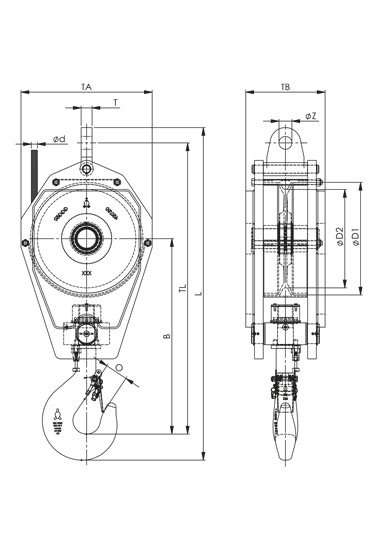

| Model # | Dimensions (inch) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| øD1 | øD2 | B | O | TA | TL | L | T | øZ | |
| SRB 225.xx.1.12,5.E | 10.2 | 8.9 | 20.6 | 2.5 | 13.6 | 31.4 | 35.9 | TBD | TBD |
| SRB 260.xx.1.12,5.E | 11.8 | 10.2 | 21.6 | 2.5 | 15.7 | 32.8 | 37.3 | TBD | TBD |
| SRB 225.xx.1.16.E | 10.2 | 8.9 | 21.6 | 2.5 | 13.6 | 32.4 | 36.9 | TBD | TBD |
| SRB 260.xx.1.16.E | 11.8 | 10.2 | 21.6 | 2.5 | 15.7 | 32.8 | 37.3 | TBD | TBD |
| SRB 285.xx.1.16.E | 12.6 | 11 | 23.9 | 2.8 | 16.5 | 35.7 | 40.7 | TBD | TBD |
| SRB 320.xx.1.16.E | 14.4 | 12.6 | 24.7 | 2.8 | 17.7 | 37.4 | 42.6 | TBD | TBD |
| SRB 355.xx.1.16.E | 16.1 | 14 | 26.3 | 2.8 | 19.7 | 39.9 | 44.8 | TBD | TBD |
| SRB 320.xx.1.20.E | 14.4 | 12.6 | 27.1 | 3.1 | 17.7 | 39.8 | 45.4 | TBD | TBD |
| SRB 355.xx.1.20.E | 16.1 | 14 | 28.1 | 3.1 | 19.7 | 41.5 | 47.4 | TBD | TBD |
| SRB 450.xx.1.25.E | 20.3 | 17.7 | 30.3 | 3.1 | 23.6 | 46.8 | 52.9 | TBD | TBD |
| SRB 528.xx.1.28.E | 23.5 | 20.8 | 33 | 3.1 | 27.9 | 52 | 58.6 | TBD | TBD |
| SRB 400.xx.1.29.E | 18.1 | 15.7 | 29.3 | 3.1 | 22.4 | 44.4 | 50.1 | TBD | TBD |
| SRB 450.xx.1.32.E | 20.3 | 17.7 | 32.8 | 3.5 | 23.6 | 49.4 | 56 | TBD | TBD |
| SRB 528.xx.1.32.E | 23.5 | 20.8 | 35.4 | 3.5 | 28 | 53.6 | 60.2 | TBD | TBD |
| SRB 450.xx.1.40.E | 20.3 | 17.7 | 42.3 | 3.9 | 23.6 | 58.5 | 65.6 | TBD | TBD |
| SRB 450.xx.1.50.E | 20.3 | 17.7 | 36.1 | 3.9 | 23.8 | 52.7 | 59.7 | TBD | TBD |
| SRB 528.xx.1.50.E | 23.5 | 20.8 | 36.8 | 3.9 | 28 | 55.6 | 63.1 | TBD | TBD |
| SRB 575.xx.1.50.E | 25.6 | 22.6 | 37.7 | 3.9 | 30.3 | 57.4 | 65.4 | TBD | TBD |
| SRB 630.xx.1.64.E | 28.3 | 24.8 | 38.8 | 4.4 | 32.5 | 59.9 | 68 | TBD | TBD |
| SRB 670.xx.1.64.E | 29.9 | 26.4 | 46.2 | 4.4 | 34.3 | 68.4 | 76.6 | TBD | TBD |
