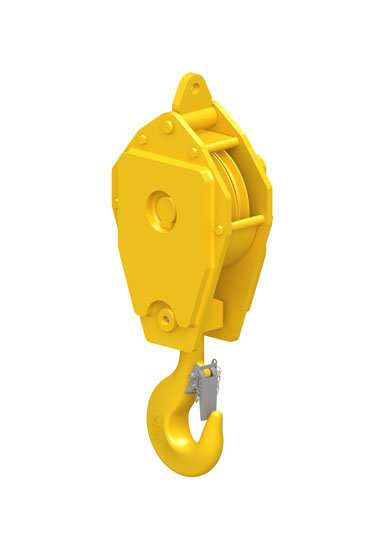

Blocks shown in this section may be used on a wide variety of land based cranes such as mobile and crawler cranes. Standard Reeve Blocks are an excellent choice where frequent easy block change is not a required main feature, or lifting height is limited:
- Double sealed maintenance free roller bearings
- Design Factor of Safety of 4:1
- Forged high tensile steel DIN hooks
- Sheaves featuring graphite lubricated groove
- High impact resistant side plates
- Operational temperature range: -40 up to +80°C / -40 up to +176°F
- Lubrication on hook suspension
- Short design for increased lifting height
- Safety latch with locking pin
- C3M finish in signal yellow
| Model # | WLL US Tons |
For Wire ød (inch) |
Hook Size |
Weight (lbs) |
|---|---|---|---|---|
| SRB 225.xx.2.16.E | 17.6 | 3/8 – 9/16 | 6 | 240 |
| SRB 260.xx.2.16.E | 17.6 | 7/16 – 5/8 | 6 | 285 |
| SRB 285.xx.2.16.E | 17.6 | 1/2 – 3/4 | 6 | 210 |
| SRB 260.xx.2.20.E | 22 | 7/16 – 5/8 | 8 | 285 | 350 |
| SRB 285.xx.2.20.E | 22 | 1/2 – 3/4 | 8 | 285 | 330 |
| SRB 320.xx.2.20.E | 22 | 9/16 – 3/4 | 8 | 350 |
| SRB 320.xx.2.22.E | 24 | 9/16 – 3/4 | 8 | 350 |
| SRB 260.xx.2.25.E | 27.5 | 7/16 – 5/8 | 8 | 350 |
| SRB 320.xx.2.25.E | 27.5 | 9/16 – 3/4 | 8 | 450 |
| SRB 355.xx.2.29.E | 32 | 9/16 – 7/8 | 8 | 550 |
| SRB 400.xx.2.29.E | 32 | 5/8 – 1 | 8 | 705 |
| SRB 450.xx.2.40.E | 45 | 3/4 – 1 1/8 | 12 | 1210 |
| SRB 450.xx.2.50.E | 55 | 3/4 – 1 1/8 | 12 | 1210 |
| SRB 400.xx.2.55.E | 60 | 5/8 – 1 | 12 | 800 |
| SRB 528.xx.2.64.E | 70 | 7/8 – 1 1/4 | 16 | 2155 |
| SRB 528.xx.2.80.E | 88 | 7/8 – 1 1/4 | 20 | 2200 |
| SRB 670.xx.2.100.E | 110 | 1 – 1 3/8 | 20 | 4930 |
| Model # | Dimensions (inch) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| øD1 | øD2 | B | O | TA | TL | L | T | øZ | |
| SRB 225.xx.2.16.E | 11.8 | 10.2 | 23.3 | 2.8 | 15.7 | 34.6 | 39.5 | TBD | TBD |
| SRB 260.xx.2.16.E | 11.8 | 10.2 | 23.3 | 2.8 | 15.7 | 34.6 | 39.5 | TBD | TBD |
| SRB 285.xx.2.16.E | 12.6 | 11 | 23.9 | 2.8 | 16.5 | 35.7 | 40.7 | TBD | TBD |
| SRB 260.xx.2.20.E | 11.8 | 10.2 | 26.7 | 3.1 | 15.7 | 43 | 38 | TBD | TBD |
| SRB 285.xx.2.20.E | 12.6 | 11 | 26.3 | 3.1 | 16.5 | 38.1 | 43.4 | TBD | TBD |
| SRB 320.xx.2.20.E | 14.4 | 12.6 | 27.1 | 3.1 | 17.7 | 39.8 | 45.1 | TBD | TBD |
| SRB 320.xx.2.22.E | 14.4 | 12.6 | 27.1 | 3.1 | 17.7 | 39.8 | 45.6 | TBD | TBD |
| SRB 260.xx.2.25.E | 11.8 | 10.2 | 26.5 | 3.1 | 15.7 | 37.7 | 42.8 | TBD | TBD |
| SRB 320.xx.2.25.E | 14.4 | 12.6 | 27.1 | 3.1 | 17.7 | 39.8 | 45.1 | TBD | TBD |
| SRB 355.xx.2.29.E | 16.1 | 14 | 28.1 | 3.1 | 19.7 | 41.9 | 47.4 | TBD | TBD |
| SRB 400.xx.2.29.E | 18.1 | 15.7 | 29.3 | 3.1 | 22.4 | 44.4 | 50.1 | TBD | TBD |
| SRB 450.xx.2.40.E | 20.3 | 17.7 | 35.2 | 3.9 | 23.6 | 52 | 58.1 | TBD | TBD |
| SRB 450.xx.2.50.E | 20.3 | 17.7 | 35.2 | 3.9 | 23.6 | 52 | 59.6 | TBD | TBD |
| SRB 400.xx.2.55.E | 18.1 | 15.7 | 34 | 3.9 | 22.4 | 48.9 | 55.6 | TBD | TBD |
| SRB 528.xx.2.64.E | 23.4 | 20.8 | 39.5 | 4.4 | 28 | 58.4 | 65.9 | TBD | TBD |
| SRB 528.xx.2.80.E | 23.4 | 20.8 | 43.7 | 4.9 | 28 | 62.6 | 71.2 | TBD | TBD |
| SRB 670.xx.2.100.E | 29.9 | 26.4 | 49.5 | 4.9 | 34.3 | 71.7 | 80.4 | TBD | TBD |
