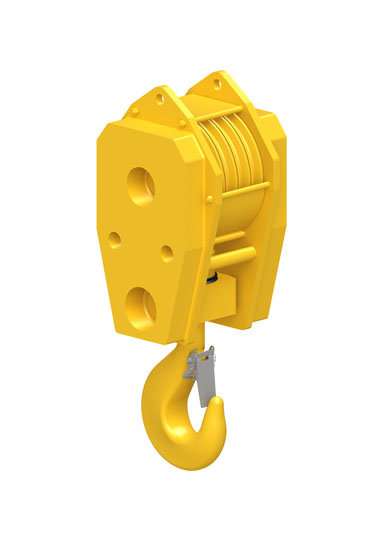

Blocks shown in this section may be used on a wide variety of land based cranes such as mobile and crawler cranes. Standard Reeve Blocks are an excellent choice where frequent easy block change is not a required main feature, or lifting height is limited:

  • Double sealed maintenance free roller bearings
  • Design Factor of Safety of 4:1
  • Forged high tensile steel DIN hooks
  • Sheaves featuring graphite lubricated groove
  • High impact resistant side plates
  • Operational temperature range: -40 up to +80°C / -40 up to +176°F
  • Lubrication on hook suspension
  • Short design for increased lifting height
  • Safety latch with locking pin
  • C3M finish in signal yellow
Model # WLL
US Tons		 For Wire
ød (inch)		 Hook
Size		 Weight
(lbs)
SRB 285.xx.4.35.E 38.5 1/2 – 3/4 10 570
SRB 355.xx.4.50.E 55 9/16 – 7/8 12 1045
SRB 528.xx.4.55.E 60 7/8 – 1 1/4 12 2600
SRB 400.xx.4.64.E 70 5/8 – 1 16 1155
SRB 450.xx.4.64.E 70 3/4 – 1 1/8 16 1595
SRB 528.xx.4.70.E 77 7/8 – 1 1/4 16 3850
SRB 450.xx.4.82.E 90 3/4 – 1 1/8 20 2110
SRB 450.xx.4.82.E 90 3/4 – 1 1/8 20 2110
SRB 528.xx.4.105.E 115 7/8 – 1 1/4 25 3900
SRB 710.xx.4.105.E 115 1 1/8 – 1 1/2 25 3000
SRB 450.xx.4.108.E 120 3/4 – 1 1/8 25 3200
SRB 670.xx.4.160.E 176 1 – 1 3/8 40 6930

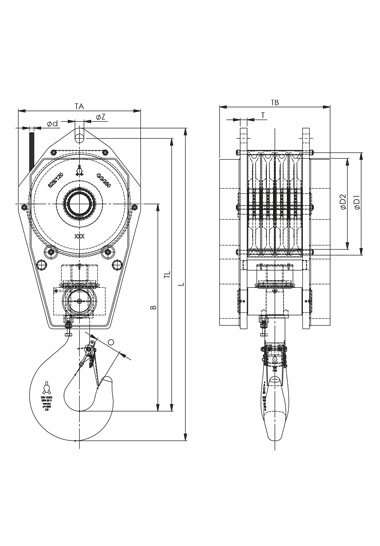

Model # Dimensions (inch)
øD1 øD2 B O TA TL L T øZ
SRB 285.xx.4.35.E 12.8 11.2 26 3.5 15.7 36.2 40.4 TBD TBD
SRB 355.xx.4.50.E 16.1 14 33 3.9 19.7 43.9 50.8 TBD TBD
SRB 528.xx.4.55.E 23.5 20.8 38.5 3.9 28 53.5 60.6 TBD TBD
SRB 400.xx.4.64.E 18.1 15.7 35.6 4.4 22.4 47.2 54.4 TBD TBD
SRB 450.xx.4.64.E 20.3 17.7 38 4.4 23.6 52 59.2 TBD TBD
SRB 528.xx.4.70.E 23.5 20.8 40.4 4.4 28 55.3 63 TBD TBD
SRB 450.xx.4.82.E 20.3 17.7 41.2 4.9 23.6 51.6 59.8 TBD TBD
SRB 450.xx.4.82.E 20.3 17.7 41.2 4.9 23.6 51.6 59.8 TBD TBD
SRB 528.xx.4.105.E 23.4 20.8 48.1 5.5 28 62.7 71.8 TBD TBD
SRB 710.xx.4.105.E 31.5 28 53.3 5.5 35.4 73.9 84.4 TBD TBD
SRB 450.xx.4.108.E 20.3 17.7 46.8 5.5 23.6 60.2 68.9 TBD TBD
SRB 670.xx.4.160.E 29.9 26.4 60.7 7.1 34.3 82.9 94 TBD TBD
