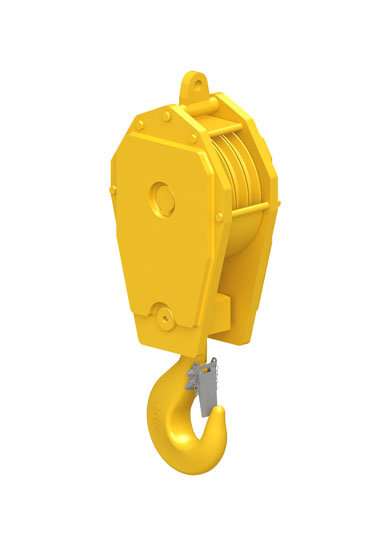

Blocks shown in this section may be used on a wide variety of land based cranes such as mobile and crawler cranes. Standard Reeve Blocks are an excellent choice where frequent easy block change is not a required main feature, or lifting height is limited:
- Double sealed maintenance free roller bearings
- Design Factor of Safety of 4:1
- Forged high tensile steel DIN hooks
- Sheaves featuring graphite lubricated groove
- High impact resistant side plates
- Operational temperature range: -40 up to +80°C / -40 up to +176°F
- Lubrication on hook suspension
- Short design for increased lifting height
- Safety latch with locking pin
- C3M finish in signal yellow
| Model # | WLL US Tons |
For Wire ød (inch) |
Hook Size |
Weight (lbs) |
|---|---|---|---|---|
| SRB 260.xx.3.25.E | 27.5 | 7/16 – 5/8 | 8 | 465 |
| SRB 285.xx.3.29.E | 32 | 1/2 – 3/4 | 8 | 465 |
| SRB 320.xx.3.29.E | 32 | 9/16 – 3/4 | 8 | 495 |
| SRB 355.xx.3.32.E | 35 | 9/16 – 7/8 | 10 | 715 |
| SRB 360.xx.3.40.E | 44 | 5/8 – 7/8 | 12 | 1000 |
| SRB 400.xx.3.40.E | 44 | 5/8 – 1 | 12 | 1100 |
| SRB 400.xx.3.50.E | 55 | 5/8 – 1 | 12 | 1100 | 1200 |
| SRB 450.xx.3.50.E | 55 | 3/4 – 1 1/8 | 16 | 1450 |
| SRB 360.xx.3.55.E | 60 | 5/8 – 7/8 | 12 | 1000 |
| SRB 400.xx.3.55.E | 60 | 5/8 – 1 | 12 | 1200 |
| SRB 450.xx.3.64.E | 70 | 3/4 – 1 1/8 | 16 | 1500 | 1700 |
| SRB 450.xx.3.70.E | 77 | 3/4 – 1 1/8 | 16 | 1500 | 1650 |
| SRB 528.xx.3.82.E | 90 | 7/8 – 1 1/4 | 20 | 2500 |
| SRB 528.xx.3.100.E | 110 | 7/8 – 1 1/4 | 25 | 2800 |
| SRB 670.xx.3.125.E | 137.5 | 1 – 1 3/8 | 25 | 6380 |
| Model # | Dimensions (inch) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| øD1 | øD2 | B | O | TA | TL | L | T | øZ | |
| SRB 260.xx.3.25.E | 11.8 | 10.2 | 25.9 | 3.1 | 15.7 | 37.5 | 42.8 | TBD | TBD |
| SRB 285.xx.3.29.E | 12.8 | 11.2 | 26.3 | 3.1 | 15.7 | 38.5 | 43.8 | TBD | TBD |
| SRB 320.xx.3.29.E | 14.4 | 12.6 | 28.1 | 3.1 | 17.7 | 41.3 | 46.6 | TBD | TBD |
| SRB 355.xx.3.32.E | 16.1 | 14 | 29.6 | 3.5 | 19.7 | 43 | 49 | TBD | TBD |
| SRB 360.xx.3.40.E | 16.1 | 14.2 | 33 | 3.9 | 19.7 | 46.4 | 52.8 | TBD | TBD |
| SRB 400.xx.3.40.E | 18.1 | 15.7 | 34 | 3.9 | 22.4 | 49 | 55.6 | TBD | TBD |
| SRB 400.xx.3.50.E | 18.1 | 15.7 | 34 | 3.9 | 22.4 | 49 | 56.1 | TBD | TBD |
| SRB 450.xx.3.50.E | 20.3 | 17.7 | 38.6 | 4.4 | 23.6 | 53.5 | 60.3 | TBD | TBD |
| SRB 360.xx.3.55.E | 16.1 | 14.2 | 33 | 3.9 | 19.7 | 46.4 | 52.9 | TBD | TBD |
| SRB 400.xx.3.55.E | 18.1 | 15.7 | 34 | 3.9 | 22.4 | 49 | 55.6 | TBD | TBD |
| SRB 450.xx.3.64.E | 20.3 | 17.7 | 37.9 | 4.4 | 23.6 | 54.2 | 61.3 | TBD | TBD |
| SRB 450.xx.3.70.E | 20.3 | 17.7 | 38.3 | 4.4 | 23.6 | 55 | 62.9 | TBD | TBD |
| SRB 528.xx.3.82.E | 23.4 | 20.8 | 44.6 | 4.9 | 28 | 63.5 | 71.7 | TBD | TBD |
| SRB 528.xx.3.100.E | 23.4 | 20.8 | 48.1 | 5.5 | 28 | 66.3 | 75.3 | TBD | TBD |
| SRB 670.xx.3.125.E | 29.9 | 26.4 | 53.3 | 5.5 | 34.3 | 75.5 | 85 | TBD | TBD |
