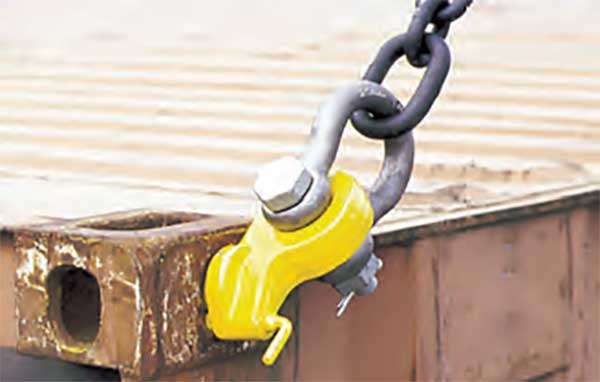

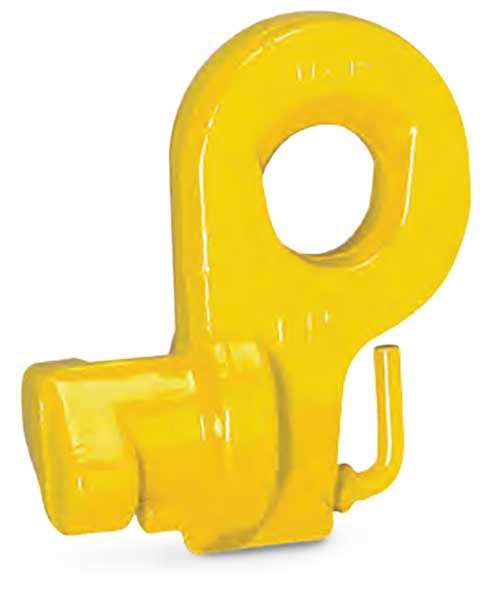

CLB Container Lifting Lugs
WORKING LOAD LIMIT: 88,100 LBS. (PER SET OF 4)
Supplied in sets of 4, CLB Lifting Lugs serve as flexible lashing points for transporting containers from the sides.
FEATURES & BENEFITS
- Spring-loaded bolt to prevent accidental release
- Mounted horizontally at the side of the container in either upper or lower holes
- Easy installation and removal – simply insert and turn to install
- Designed to eliminate the dangerous use of standard hooks
- Lugs cannot drop out when slings become slack
- The set of (4) lugs has (2) right hand and (2) left hand units.
- For maximum capacity, use a lifting beam in conjunction with CLB lifting lugs
- Design factor 4:1
| Product Code |
WLL (lbs per set of 4) |
A | B | C | D | E | F | G | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| CLB40 | 88,100 | 5.98 | 7.13 | 1.77 | 1.46 | 2.87 | 2.95 | 1.58 | 39.7 |

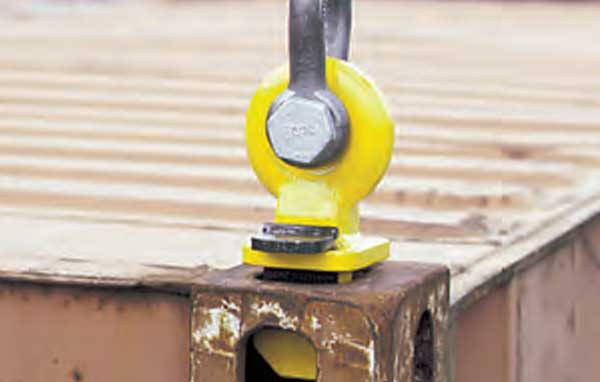

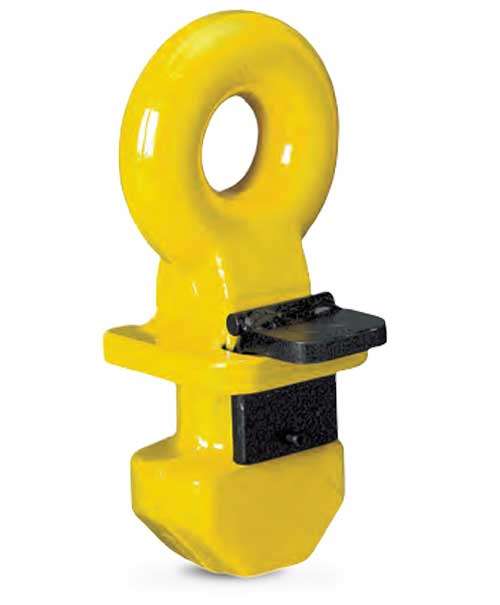

CLT Container Lifting Lugs
WORKING LOAD LIMIT: 123,480 LBS. (PER SET OF 4)
Supplied in sets of 4, CLT Lifting Lugs serve as flexible lashing points for transporting containers from the top.
FEATURES & BENEFITS
- Mounted vertically at the top of the container
- Easy installation and removal – simply insert and turn to install
- Designed to eliminate the dangerous use of standard hooks
- Lugs lock into place by simply turning the lug 90°. This configuration allows for transportation via the use of a lifting frame in conjunction with cables, chains or slings.
- Design factor 4:1
| Product Code |
WLL (lbs per set of 4) |
A | B | C | D | E | F | G | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| CLT56 | 123,480 | 4.84 | 8.54 | 1.77 | 1.54 | 2.24 | 3.98 | 4.76 | 61.7 |
