HIGHLIGHTS:
- FIBER-TECH HPS , one of the strongest lifting slings in the world.
- Proudly 100% manufactured in the USA with domestic core fibers and a domestic proprietary cover.
- Outstanding strength to weight performance, FIBER-TECH HPS easily outperforms all wire-rope slings.
- FIBER-TECH HPS uses an incredibly durable specification tag WITH a 2nd redundant tag located just inside the jacket in the event the original tag is damaged or removed. Pull the high vis yellow tail to access this tag.
- Available in a single core design 5 – 150 tons or a double core design 25 – 500 tons
- No limit on lengths. No limit on capacities. No limit on design criteria. FTHPS can meet your requirements.
- FIBER-TECH HPS is quite close to being neutrally buoyant thus offering easy handling in the water.
- FIBER-TECH HPS retains in excess of a 2.5:1 sf including the D/d reduction even if ½ the core fibers are damaged.Each FIBER-TECH HPS comes with 2 heavy duty contact protection pads.
- Each FIBER-TECH HPS is proof tested to 2X the RC “ rated capacity ” for your assurance.
Cut and pinch test at 100,000 lbs. No damage to cover.
FT-HPS RC100,000 lbs. cut @ 100,000 lb. load. No recorded load change.
Neutral to positive buoyancy
| MOD# FTHPS-SC FTHPS-DC FTHPS-X |
VERTICAL CAPACITY | CHOKER CAPACITY | BASKET CAPACITY @ 90° |
BASKET CAPACITY @ 60° |
BASKET CAPACITY @ 45° |
MIN. PIN DIAM. |
APPROX. SLING WIDTH @ LOAD |
APPROX. SLING WEIGHT PER FT. |
OUTER JACKET FIBER PA-6 NYLON |
|---|---|---|---|---|---|---|---|---|---|
| FTHP10 | 10,000 | 8,000 | 20,000 | 17,320 | 14,100 | 1.00 | 1.0″ | 1.75 | 0.25 |
| FTHPS15 | 15,000 | 12,000 | 30,000 | 25,980 | 21,000 | 1.15 | 1.125″ | 2.00 | 0.30 |
| FTHPS20 | 20,000 | 16,000 | 40,000 | 34,640 | 28,000 | 1.25 | 1.250″ | 2.25 | 0.45 |
| FTHPS25 | 25,000 | 20,000 | 50,000 | 43,300 | 35,000 | 1.40 | 1.375″ | 2.25 | 0.50 |
| FTHPS30 | 30,000 | 24,000 | 60,000 | 51,960 | 42,000 | 1.66 | 1.5″ | 2.60 | 0.58 |
| FTHPS40 | 40,000 | 32,000 | 80,000 | 69,280 | 56,000 | 2.0 | 1.5″ | 3.50 | 0.95 |
| FTHPS50 | 50,000 | 40,000 | 100,000 | 86,600 | 70,000 | 2.0 | 1.75″ | 3.50 | 0.95 |
| FTHPS60 | 60,000 | 48,000 | 120,000 | 103,920 | 84,000 | 2.00 | 2.0″ | 4.00 | 1.10 |
| FTHPS70 | 70,000 | 56,000 | 140,000 | 121,240 | 98,000 | 2.40 | 3.5″ | 4.00 | 1.30 |
| FTHPS80 | 80,000 | 64,000 | 160,000 | 138,560 | 113,000 | 2.40 | 4.5″ | 4.00 | 1.30 |
| FTHPS90 | 90,000 | 72,000 | 180,000 | 150,300 | 126,900 | 2.40 | 5.5″ | 4.25 | 1.55 |
| FTHPS100 | 100,000 | 80,000 | 200,000 | 173,200 | 141,400 | 2.40 | 6.5″ | 4.50 | 1.80 |
| FTHPS125 | 125,000 | 100,000 | 250,000 | 216,500 | 176,000 | 3.15 | 6.5″ | 5.00 | 2.20 |
| FTHPS150 | 150,000 | 120,000 | 300,000 | 259,800 | 210,000 | 3.15 | 6.5″ | 5.25 | 2.60 |
| FTHPS175 | 175,000 | 140,000 | 350,000 | 303,100 | 240,000 | 3.15 | 6.5″ | 7.00 | 3.10 |
| FTHPS200 | 200,000 | 160,000 | 400,000 | 346,400 | 280,000 | 3.50 | 7″ | 7.25 | 3.45 |
| FTHPS225 | 225,000 | 180,000 | 450,000 | 262,130 | 315,200 | 3.50 | 7-8” | Inquire | 4.80 |
| FTHPS250 | 250,000 | 200,000 | 500,000 | 433,000 | 350,000 | 3.50 | 7-9” | Inquire | 5.45 |
| FTHPS275 | 275,000 | 220,000 | 550,000 | 476,300 | 388,850 | 4.00 | 8-10” | Inquire | 5.95 |
| FTHPS300 | 300,000 | 240,000 | 600,000 | 519,600 | 424,200 | 5.25 | 10-12” | Inquire | 6.85 |
| FTHPS400 | 400,000 | 320,000 | 800,000 | 692,800 | 565,600 | 5.25 | 12-14” | Inquire | 6.85 |
| FTHPS500 | 500,000 | 400,000 | 1,000,000 | 866,000 | 707,000 | 5.25 | 12-14” | Inquire | 6.85 |

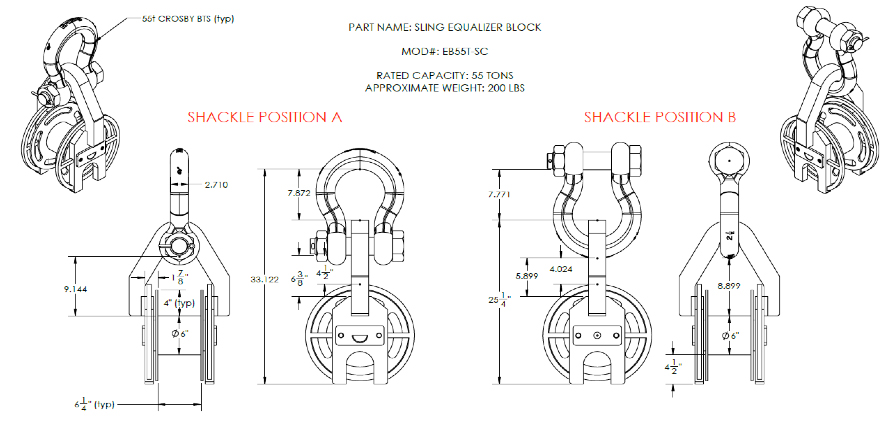

MYERS/BTH-GEAR EQUALIZER BLOCKS FOR
ENDLESS FLAT WEB, ROUND SLINGS & ROPE GROMMETS
| MODEL | RATED CAP. | APPROX WT. | DRUM DIAM. | DRUM WIDTH | SHACKLE REQ. | TOD-YOKE |
|---|---|---|---|---|---|---|
| EB35T | 35 TONS | 125 LBS | 4.00” | 4.50” | 35 TONS | 9” |
| EB55T | 55 TONS | 165 LBS | 6.00” | 6.50” | 50/55 TONS | 12” |
| EB125T | 125 TONS | 275 LBS | 7.00” | 8.00” | 120/125 TONS | 14” |
