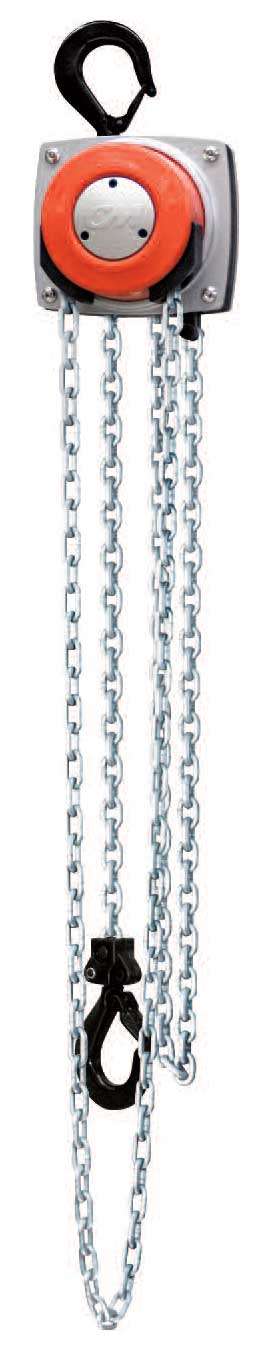

CM HURRICANE 360º HAND CHAIN HOIST
For the ultimate flexibility in a hand chain hoist, the CM Hurricane 360° is the choice for a wide range of applications. The patented hand chain cover rotates a full 360 degrees to allow loads to be lifted, pulled, or positioned from virtually any angle.
- Standard Load Limiter – For simple, automatic overload protection.
- Braking Power – Weston-Style braking system provides reliable positive load control.
- Powder Coated Finish – For corrosion protection.
- Heat Treated Steel Gearing – All internal gears & pinions are heat treated steel for high strength and long life.
- Chain Guide & Stripper – Assures load chain alignment.
- Precision 4-Pocket Liftwheel – Fully machined for better chain fit and reduced wear allowing for accurate movement of the load chain.
- Hardened Steel Chain – Alloy steel load chain assures high strength and long wear life.
- Minimal Maintenance – Easily disassembled, requiring no special tools.
- Meets ASME B30.16 – And European CE Standard
- 5-Year Warranty – Against defects in materials and workmanship.
- Fast & Easy Parts Access – Genuine CM Hurricane 360° parts are available in Total Repair Kits and convenient bulk packaging.
Sealed Ball Bearings and Sliding Bushings
Weston-Style Brake System
| Product Code | Load Rating TONS (kg) |
Lift (ft) | Lift (m) | Net Wt LBS |
|---|---|---|---|---|
| 5623A | 1/2 (500) |
10 | 3 | 23 |
| 5624A | 15 | 4.5 | 28 | |
| 5625A | 20 | 6 | 33 | |
| 5651A | 30 | 9 | 43 | |
| 5626A | 1 (1000) |
10 | 3 | 26 |
| 5627A | 15 | 4.5 | 33 | |
| 5628A | 20 | 6 | 41 | |
| 5653A | 30 | 9 | 58 | |
| 5629A | 2 (2000) |
10 | 15 | 45 |
| 5630A | 20 | 3 | 48 | |
| 5631A | 4.5 | 6 | 51 | |
| 5635A | 3 (3000) |
10 | 15 | 68 |
| 5636A | 20 | 3 | 79 | |
| 5637A | 4.5 | 6 | 90 | |
| 5639A | 5 (5000) |
10 | 15 | 122 |
| 5640A | 20 | 3 | 142 | |
| 5641A | 4.5 | 6 | 162 | |
| 5643A | 10 (10000) |
10 | 15 | 210 |
| 5644A | 20 | 3 | 240 | |
| 5645A | 4.5 | 6 | 270 |
| Product Code | Lift (ft) | Lift (m) | Net Wt LBS |
|---|---|---|---|
| 5623A | 10 | 3 | 23 |
| 5624A | 15 | 4.5 | 28 |
| 5625A | 20 | 6 | 33 |
| 5651A | 30 | 9 | 43 |
| 5626A | 10 | 3 | 26 |
| 5627A | 15 | 4.5 | 33 |
| 5628A | 20 | 6 | 41 |
| 5653A | 30 | 9 | 58 |
| 5629A | 10 | 15 | 45 |
| 5630A | 20 | 3 | 48 |
| 5631A | 4.5 | 6 | 51 |
| 5635A | 10 | 15 | 68 |
| 5636A | 20 | 3 | 79 |
| 5637A | 4.5 | 6 | 90 |
| 5639A | 10 | 15 | 122 |
| 5640A | 20 | 3 | 142 |
| 5641A | 4.5 | 6 | 162 |
| 5643A | 10 | 15 | 210 |
| 5644A | 20 | 3 | 240 |
| 5645A | 4.5 | 6 | 270 |

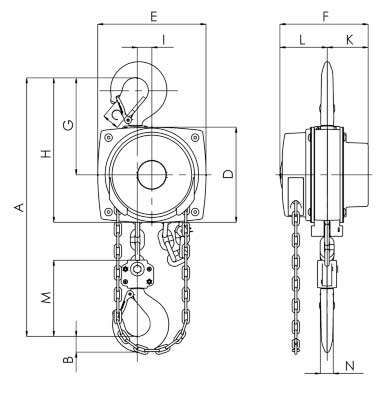

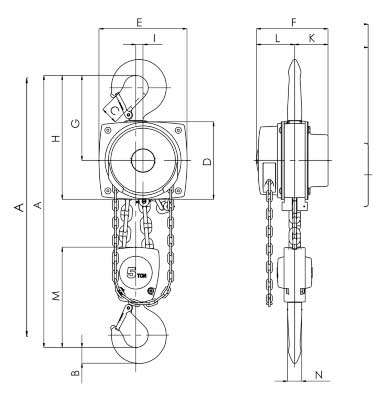

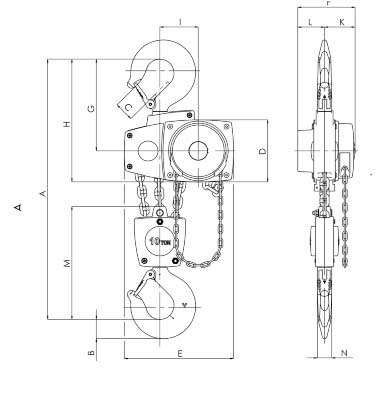

| Product Code | Dimensions in Inches (mm) | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| 5623A | 11.811 (300) |
0.669 (17) |
0.945 (24) |
5.236 (133) |
5.827 (148) |
5.827 (148) |
5.472 (139) |
| 5624A | |||||||
| 5625A | |||||||
| 5651A | |||||||
| 5626A | 13.189 (335) |
0.866 (22) |
1.142 (29) |
6.142 (156) |
6.890 (175) |
6.575 (167) |
6.457 (164) |
| 5627A | |||||||
| 5628A | |||||||
| 5653A | |||||||
| 5629A | 15.551 (395) |
1.181 (30) |
1.378 (35) |
7.165 (182) |
7.992 (203) |
7.638 (194) |
7.559 (192) |
| 5630A | |||||||
| 5631A | |||||||
| 5635A | 20.472 (520) |
1.496 (38) |
1.575 (40) |
8.661 (220) |
9.843 (250) |
8.622 (219) |
8.858 (225) |
| 5636A | |||||||
| 5637A | |||||||
| 5639A | 25.748 (654) |
1.772 (45) |
1.850 (47) |
8.661 (220) |
9.843 (250) |
8.622 (219) |
9.528 (242) |
| 5640A | |||||||
| 5641A | |||||||
| 5643A | 32.480 (825) |
2.677 (68) |
2.677 (68) |
8.661 (220) |
15.079 (383) |
8.622 (219) |
12.835 (326) |
| 5644A | |||||||
| 5645A | |||||||
| Product Code | Dimensions in Inches (mm) | |||||
|---|---|---|---|---|---|---|
| H | I | K | L | M | N | |
| 5623A | 8.110 (206) |
0.945 (24) |
2.402 (61) |
3.425 (87) |
4.331 (110) |
0.551 (14) |
| 5624A | ||||||
| 5625A | ||||||
| 5651A | ||||||
| 5626A | 9.528 (242) |
0.945 (24) |
2.756 (70) |
3.819 (97) |
4.921 (125) |
0.748 (19) |
| 5627A | ||||||
| 5628A | ||||||
| 5653A | ||||||
| 5629A | 11.142 (283) |
1.220 (31) |
3.268 (83) |
4.370 (111) |
6.142 (156) |
0.866 (22) |
| 5630A | ||||||
| 5631A | ||||||
| 5635A | 13.189 (335) |
1.339 (34) |
3.740 (95) |
4.882 (124) |
7.008 (178) |
1.181 (30) |
| 5636A | ||||||
| 5637A | ||||||
| 5639A | 13.858 (352) |
0.827 (21) |
3.740 (95) |
4.882 (124) |
11.220 (285) |
1.457 (37) |
| 5640A | ||||||
| 5641A | ||||||
| 5643A | 17.165 (436) |
5.354 (136) |
3.740 (95) |
4.882 (124) |
15.787 (401) |
1.969 (50) |
| 5644A | ||||||
| 5645A | ||||||
CM Hurricane 360: Below-the-Operator Application
The CM Hurricane 360˚ has a patented hand chain cover that rotates a full 360 degrees to allow for positioning, pulling and lifting of loads from virtually any angle.
CM Hurricane 360: Lever Chain Hoist Application
The CM Hurricane 360˚ has a patented hand chain cover that rotates a full 360 degrees to allow for positioning, pulling and lifting of loads from virtually any angle – making it the only hoist of its kind in the industry. Featuring capacities from 1/2 to 10 tons, a standard Load Limiter, and a lifetime warranty.
CM Hurricane 360: Drifting Application
The CM Hurricane 360˚ has a patented hand chain cover that rotates a full 360 degrees to allow for positioning, pulling and lifting of loads from virtually any angle – making it the only hoist of its kind in the industry.
