LUG-ALL MEDIUM FRAME WEB STRAP RATCHET WINCH
Our medium frame web strap ratchet winch hoists provide you with extra pulling strength for capacities from 1-1/2 to 2 tons. These medium frame Lug-All winch hoists deliver excellent lifting and pulling power in a simple, easy to use design. Like all Lug-All web strap pullers, these precision tools are beautifully crafted to deliver easy, trouble-free pulling of energized power lines.

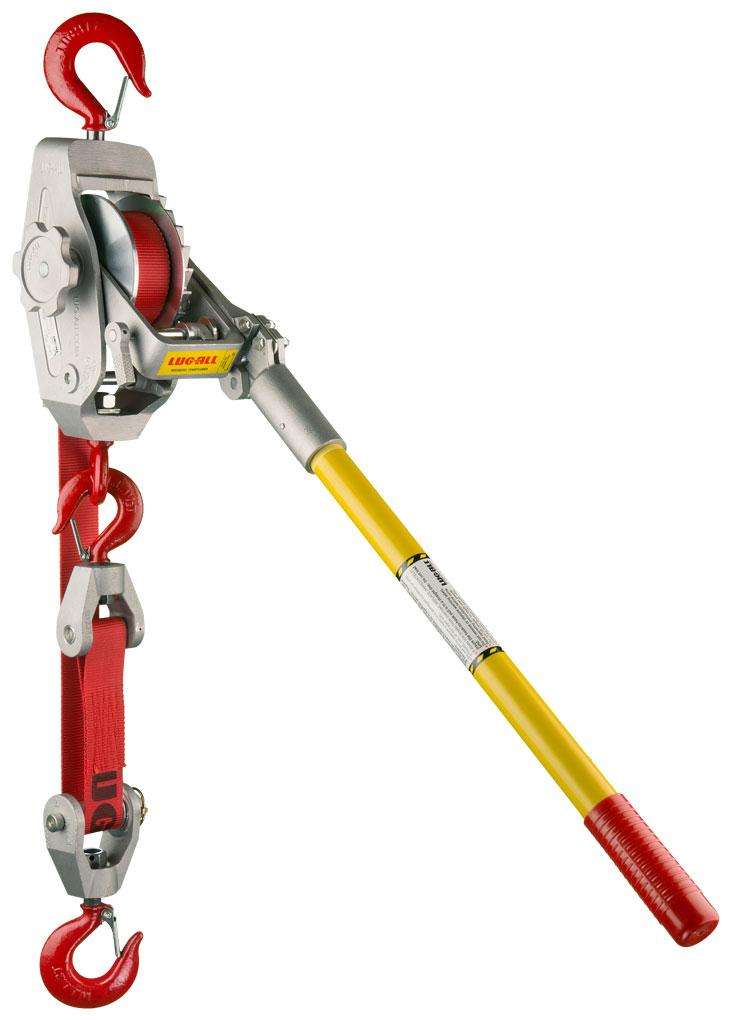

1 1/2 Ton Web Strap Hoist (Model 3-A)

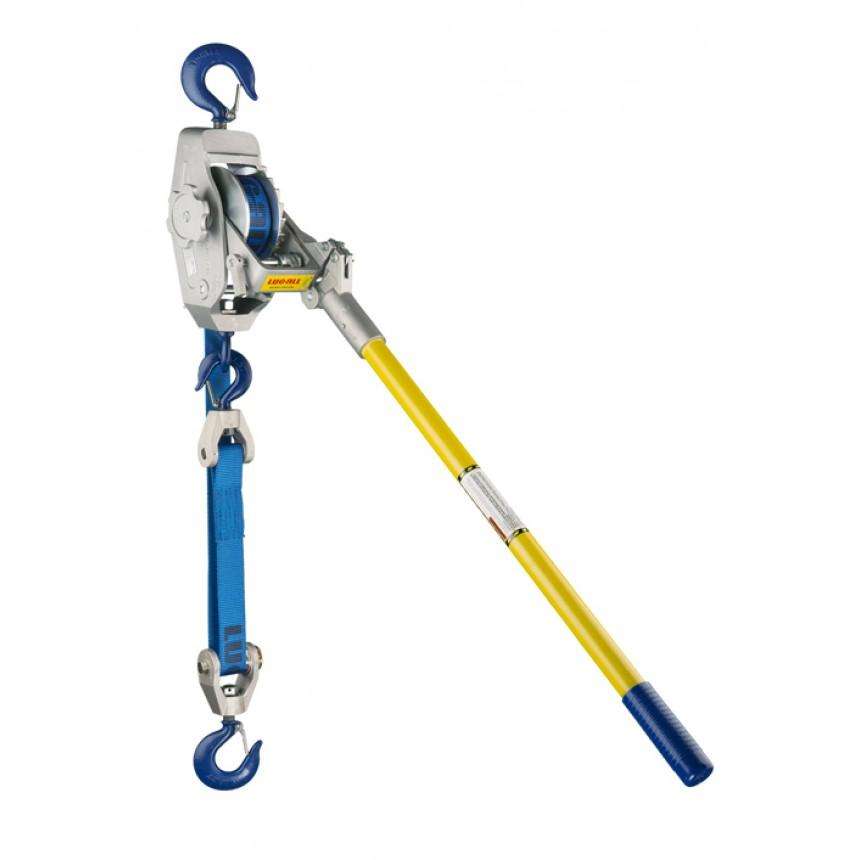

2 Ton Web Strap Hoist (Model 4-A)
| MODEL NO | 3-A | 4-A | ||
|---|---|---|---|---|
| DOUBLE LINE CAPACITY | 1-1/2 Ton | 2 Ton | ||
| DOUBLE PULL DISTANCE | 27” | 6’-2” | 27” | 4’-1” |
| SINGLE LINE CAPACITY | 3/4 Ton | 1 Ton | ||
| SINGLE PULL DISTANCE | 19” | 13’-2” | 19” | 9’-4” |
| CABLE LENGTH | 14′ | 10’ | ||
| CABLE DIAM | 30” | 36” | ||
| NET WT | 14 lbs | 15.5 lbs | ||
