Miscellaneous Trolleys – CM Series 632
Close Radius with revolutionary advances, this shorter, more compact trolley is 50% lighter than competitive trolleys, yet every bit as tough.
Features:
- Negotiates radius curves as tight as 7 to 10 inches
- Made of highest quality rolled steel
- Unique double row, ball bearing wheel design for greater wear capacity
- Larger V-bars available for wider flange adjustment
- For low headroom applications
- Bearings prepacked with lifetime lubricant
- Exclusive Dial-Fit collar quickly adapts trolley to wide range of beams and patented rails
- Dust covers shield and protect bearings
- Trolleys available for larger beams, rails or tracks; contact CM
- Cast iron trolley guards available (except for 3 ton)
- Lifetime warranty
- Made in U.S.A.
Specifications and Dimensions
| Rated capacity* curve (tons) |
Product Code |
Depth of Beam (in) |
Flange Width (in) |
| 1⁄4 – 1⁄2 | 3222 | 4-12 | 2 5⁄8 – 5 1⁄16 |
| 1 | 3224 | 4-12 | 2 5⁄8 – 5 1⁄16 |
| 1 1⁄2 – 2 | 3226 | 6-15 | 3 3⁄8 – 5 5⁄8 |
| 3 | 3230 | 8-18 | 4 -6 1⁄4 |
| Rated capacity* curve (tons) |
Tread Diam (in) |
Net Weight (lbs) |
Shipping Weight (lbs) |
Minimum Radius (in) |
| 1⁄4 – 1⁄2 | 2 3⁄4 | 9 | 10 | 7 |
| 1 | 2 3⁄4 | 10 | 12 | 7 |
| 1 1⁄2 – 2 | 3 1⁄2 | 23 | 25 | 10 |
| 3 | 3 1⁄2 | 29 | 33 | 10 |
Miscellaneous Trolleys – TBT Snap-on Trolley
Specifications and Dimensions
| WLL (lbs) |
Product Code |
Jaw Opening (in) |
Weight (lbs) |
| 660 | 694996 | 2 3/8 | 15 1/2 |
| 2,200 | 694997 | 3 – 4 | 17 1/2 |
| 4,400 | 694998 | 4 – 5 7/8 | 35 1/2 |
| 6,600 | 694999 | 4 – 7 7/8 | 57 1/2 |
A range of snap on push travel trolleys. Once the load is in position the trolley is locked in position, in addition a spring loaded safety pin is included for extra safety.
Specifications and Dimensions| Product Code |
Dimensions (in) | |||||
| 1A | B | C | D | E | F | |
| 694996 | 17 7/8 | 10 7/8 | 1 1/2 | 4 1/8 | 3/4 | 7 7/8 |
| 694997 | 10 1/4 | 19 | 1 1/8 | 3 | 3/4 | 7 7/8 |
| 694998 | 13 3/8 | 12 5/8 | 1 1/2 | 3 5/8 | 3/4 | 7 7/8 |
| 694999 | 16 1/2 | 15 3/4 | 1 7/8 | 4 | 3/4 | 7 7/8 |
A range of snap on push travel trolleys. Once the load is in position the trolley is locked in position, in addition a spring loaded safety pin is included for extra safety.
Beam Clamp
1 to 10 Metric Ton Capacity
Features:
The easy way to install a fixed hoist mount or rigging point.
- Simple installation by hand, no tools required for adjustment to beam flange
- Compact and portable low headroom design
- Meets OSHA, ASME B30, NASA-STD-8719.9 and EU Directives: 2006/42/EC codes having a in design factor of 5:1 for use with manual or powered hoist.
| Cap | Model | (WLL) Cap from Vert at 0⁰ |
(WLL) Cap from Vert at 15⁰ |
(WLL) Cap from Vert at 30⁰ |
(WLL) Cap from Vert at 45⁰ |
|---|---|---|---|---|---|
| 1t | BC-01 | 2,200 | 0 | 0 | 0 |
| 2t | BC-02 | 4,400 | 0 | 0 | 0 |
| 3t | BC-03 | 6,600 | 0 | 0 | 0 |
| 5t | BC-05 | 11,000 | 0 | 0 | 0 |
| 10t | BC-10 | 22,000 | 0 | 0 | 0 |

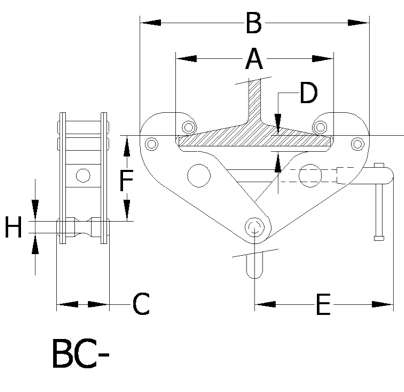

| Model | A” Adj |
B” Max |
C” | D” | E” | F” Max |
H” | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| BC-01 | 3.1 – 9.4 | 14.6 | 3.7 | 0.75 | 7.8 | 5.7 | 0.8 | 7.7 |
| BC-02 | 3.1 – 9.4 | 14.6 | 4.0 | 0.75 | 7.8 | 5.7 | 0.8 | 9.9 |
| BC-03 | 3.5 – 13.0 | 19.7 | 5.2 | 1.12 | 10.4 | 8.2 | 0.9 | 20.9 |
| BC-05 | 3.5 – 13.0 | 19.7 | 5.6 | 1.41 | 10.4 | 8.2 | 0.9 | 24.2 |
| BC-10 | 3.5 – 13.4 | 20.6 | 7.1 | 1.50 | 11.2 | 8.7 | 1.5 | 35.2 |
