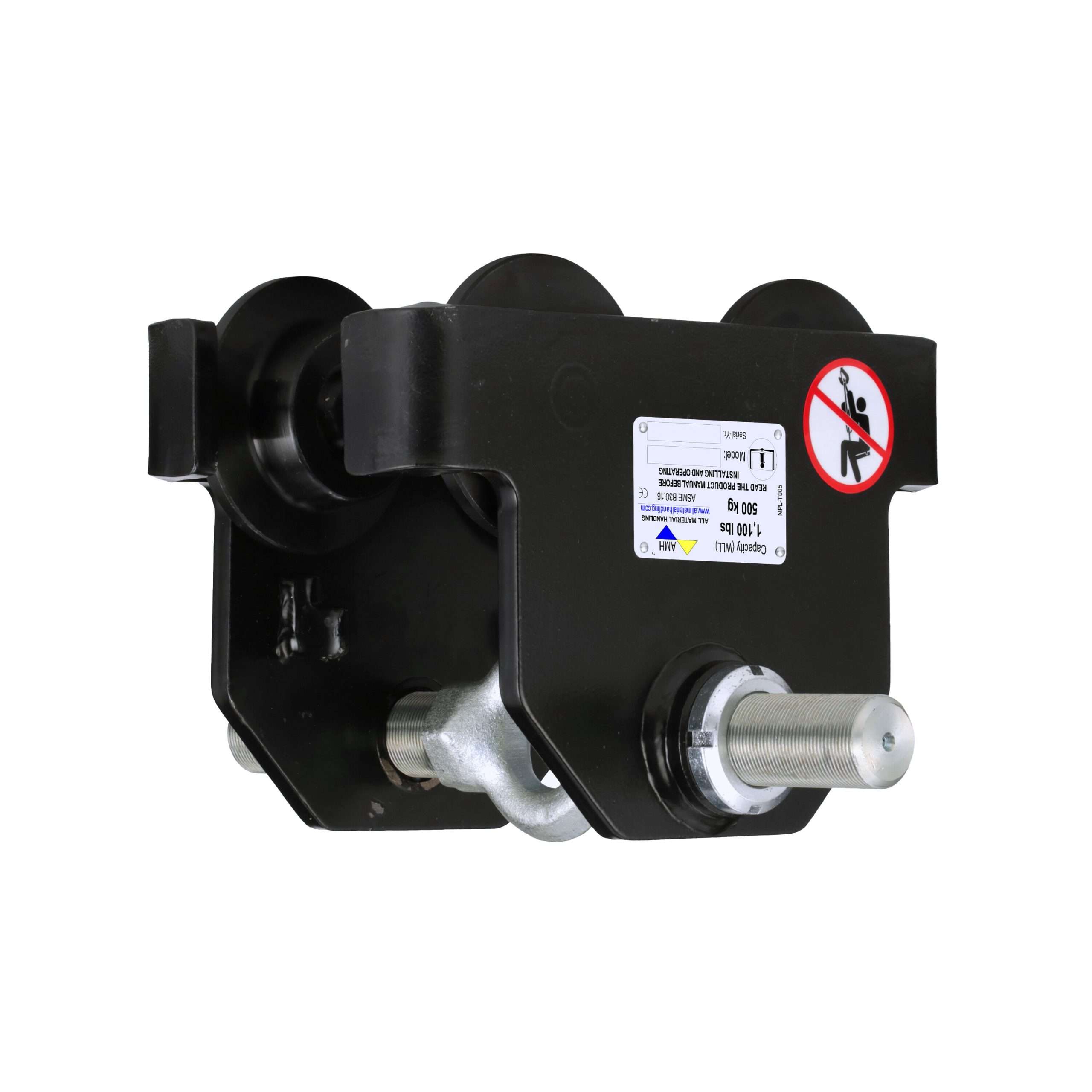

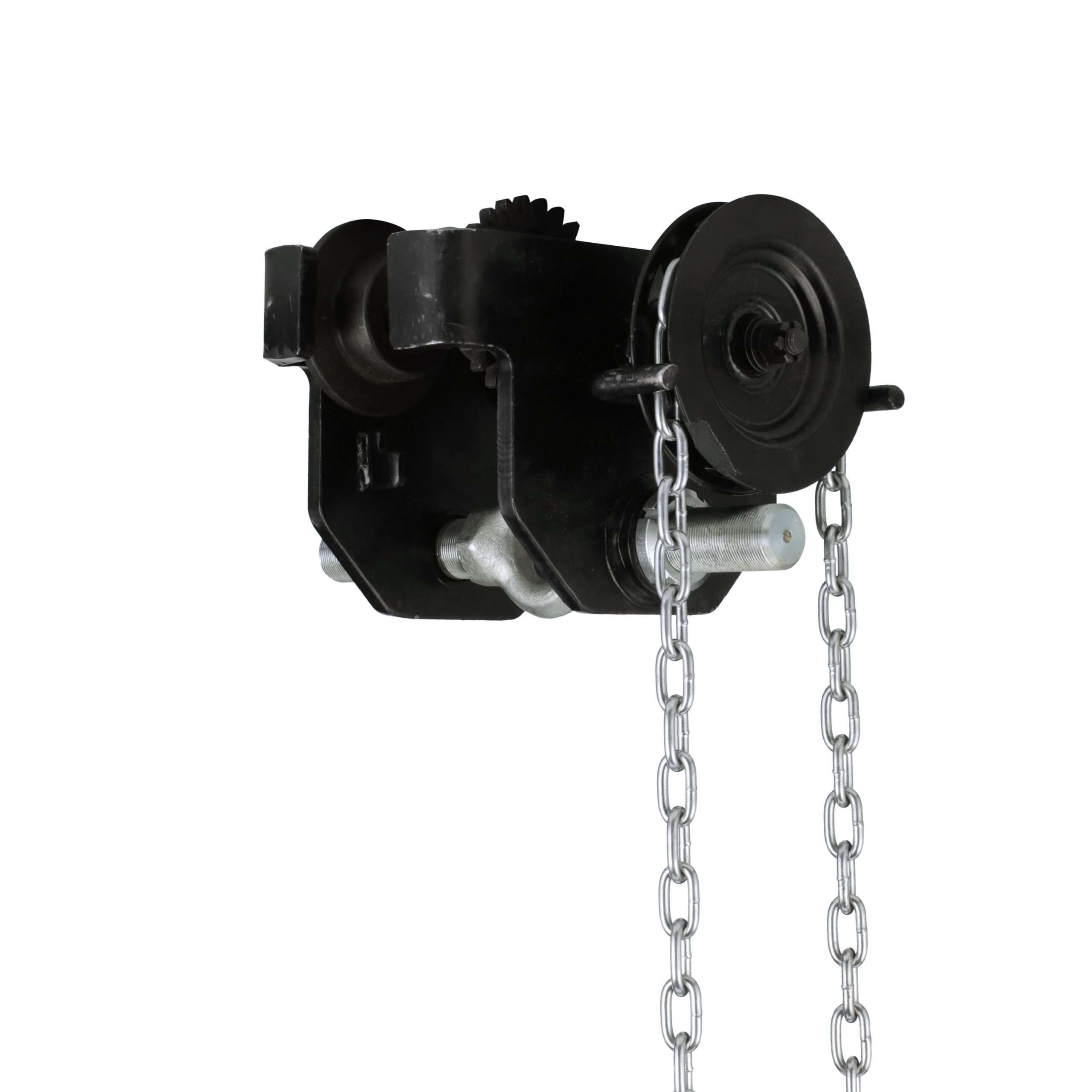

PUSH & GEARED TROLLEY
1/2 TO 10 METRIC TON CAPACITY
FEATURES & BENEFITS
- The easiest trolley installation ever
- 1/2 to 5t installation and adjustment by rotating the threaded hanger shaft. 10 & 20t is from one side, trolley hanger shafts are fix mounted
to the opposite side plate - Machined cast iron wheels with universal tread design to fit flat or tapered beam flanges
- Low headroom design with precision sealed “lubed for life” bearings assure smooth operation
- Durable all steel construction with standard safety lugs
- Geared trolley hand chain drop is standard with 10 feet
- Meets: ASME/ANSl B30.16, OSHA, NASA-STD-8719.9, EU Directives: 2006/42/EC
- ATEX rated II 3 GD c IIB 54º C X for limited use in Hazardous Environments
1/2 to 5 Metric Ton Hoists
10 Metric Ton

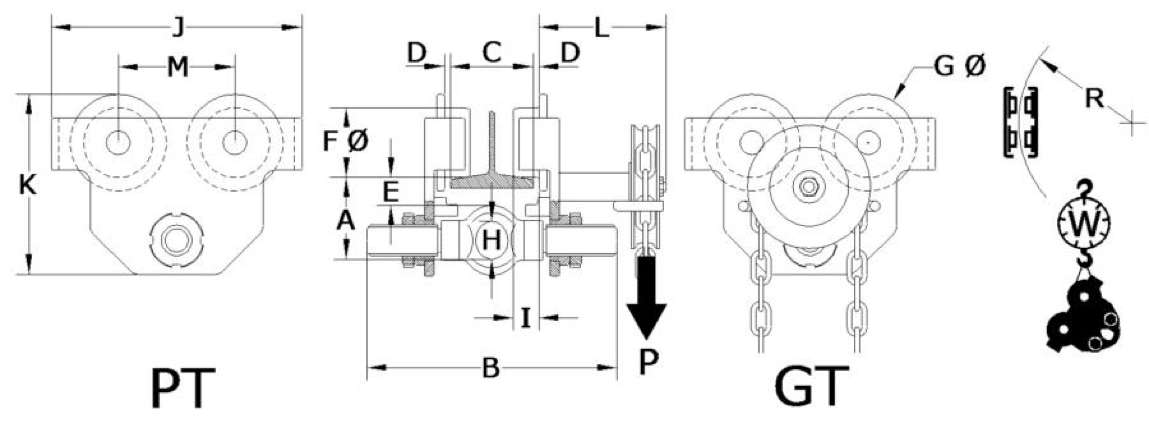

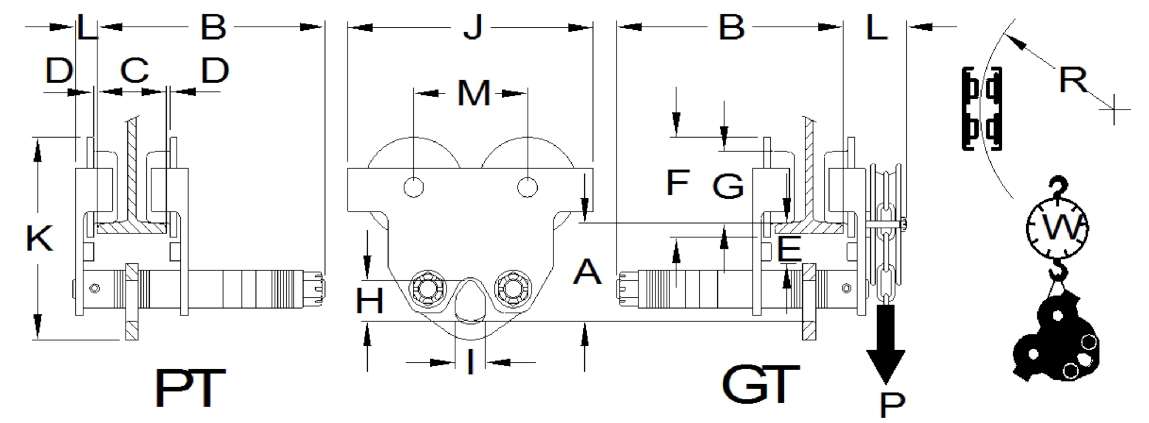

| Model | WLL | A | B | C | D | E | F | G | H |
| PT005 | 1/2t | 3.3 | 11.5 | 1.97-8.66 | 0-0.12 | 1.5 | 2.3 | 3.4 | 1.2 |
| PT010 | 1t | 3.7 | 11.8 | 2.28-8.66 | 0-0.12 | 1.7 | 2.4 | 3.7 | 1.4 |
| GT010 | |||||||||
| PT020 | 2t | 4.4 | 12.2 | 2.60-8.66 | 0-0.12 | 1.6 | 3.2 | 4.6 | 1.9 |
| GT020 | |||||||||
| PT030 | 3t | 5.8 | 12.8 | 2.91-8.66 | 0-0.12 | 2.5 | 3.9 | 5.5 | 2.3 |
| GT030 | |||||||||
| PT050 | 5t | 6.3 | 13 | 3.54-8.66 | 0-0.12 | 2.2 | 4.3 | 5.9 | 2.8 |
| GT050 | |||||||||
| PT100 | 10t | 7.5 | 15.5 | 4.9-12.01 | 0.8-0.13 | 1.8 | 6.9 | 5.4 | 4.4 |
| GT100 |
| Model | H | I | J | K | L | M | P (lbs) |
R Min |
W (lbs) |
| PT005 | 1.2 | 0.9 | 8.9 | 6.8 | —- | 4 | —- | 36 | 18 |
| PT010 | 1.4 | 0.9 | 9.9 | 7.4 | —- | 4.8 | —- | 40 | 24 |
| GT010 | 4.5 | 18.1 | 35 | ||||||
| PT020 | 1.9 | 1 | 11.8 | 8.9 | —- | 5.5 | —- | 48 | 40 |
| GT020 | 4.5 | 33.7 | 51 | ||||||
| PT030 | 2.3 | 1.3 | 14.2 | 11.4 | —- | 6.3 | —- | 52 | 69 |
| GT030 | 5.3 | 26.9 | 83 | ||||||
| PT050 | 2.8 | 1.5 | 15.4 | 12.3 | —- | 6.7 | —- | 56 | 94 |
| GT050 | 5.4 | 35.9 | 108 | ||||||
| PT100 | 4.4 | 2.8 | 18.1 | 15.5 | 1.8 | 7.9 | —- | 79 | 198 |
| GT100 | 4.3 | 54 | 207 |
