POWERFUL: GRIPHOIST-TIRFOR TU machines are in daily operation on construction sites around the world putting power where it is needed for lifting, pulling and handling a wide variety of loads. Only the TU models are UL classified for man-riding. (Please refer to your local safety regulations).

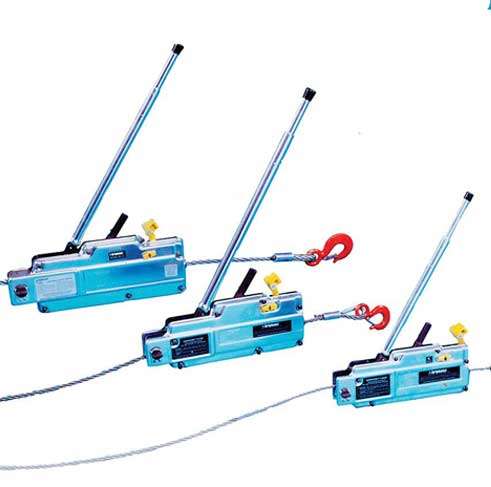

CHOICE: Light and compact, the GRIPHOIST-TIRFOR T-500 machines are even easier to handle, provide a high mechanical advantage and are economical.
| Model | Approx Speed Per Min (fpm) |
Nominal Capacity LBS (kg) |
Weight LBS (kg) |
|
| Machine | Wire Rope | |||
| TU-17 | 7-9 | 2,000*/1,500** (800/600) |
18.5 (8.4) |
30ft/9m 8 (3.6) |
| TU-28 | 7-8 | 4,000*/3,000** (1,600/1,200) |
41 (20) |
60ft/18m 28.9 (13) |
| TU-32 | 5 | 8,000*16,000** (3,200/2,400) |
59.5 (27) |
30ft/9m 8 (3.5) |
| T-508 | 7-9 | 2,000* (800) |
14.25 (6.6) |
30ft/9m 8 (3.5) |
| T-516 | 6 | 4,000* (1,600) |
30 (13.5) |
60ft/18m 28.9 (13) |
| T-532 | 6 | 8,000* (3,200) |
51 (24) |
30ft/9m 8 (3.5) |
| Model | Dimensions IN (mm) | Special Tirfor | ||
| Machine | Wire Rope | Dia IN (mm) | Break Strain LBS (kg) |
|
| TU-17 | 20-3/4×9-3/4×4-1/2 (528x284x113) |
28/18 (730/450) |
5/16 (8.3) |
10,000 (4,800) |
| TU-28 | 26x13x5-3/4 (660x360x145) |
45/26 (1147/648) |
7/16 (11.5) |
20,000 (9,600) |
| TU-32 | 27x13x6-1/8 (685x365x156) |
45/26 (1147/648) |
5/8 (16.3) |
40,000 (19,200) |
| T-508 | 16-1/2×9-7/8×3-7/8 (420x250x99) |
27/16 (690/405) |
5/16 (8.3) |
10,000 (4,800) |
| T-516 | 20-7/8×12-7/16×5 (530x315x127) |
45/26 (1147/648) |
7/16 (11.5) |
20,000 (9,600) |
| T-532 | 24-7/16x14x5-1/8 (631x357x148) |
45/26 (1147/648) |
5/8 (16.3) |
40,000 (19,200) |
