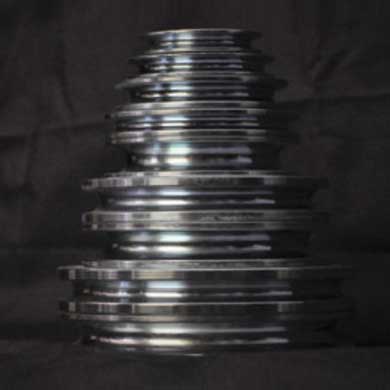

Block Division sheaves are machined from cold rolled bar stock and then bright zinc electroplated for corrosion resistance.
These industrial sheaves are ready to work on such applications as aircraft hangar doors, agricultural machinery or other manufacturing plant applications.
| Model # | Max Cable Size |

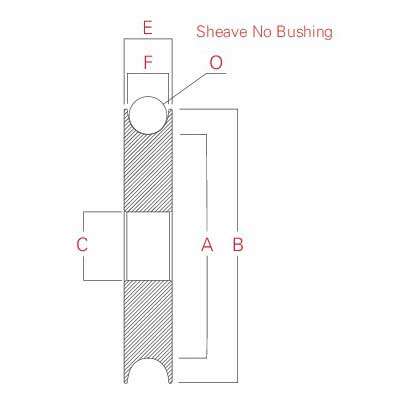

A | B | C | E | F | O | WLL | WGT (EA) |
|---|---|---|---|---|---|---|---|---|---|
| SH150 | 3/16″ | 1″ | 1 1/2″ | 5/8″ | 7/16″ | 5/16″ | 3/16″ | 525 lbs | 0.20 lbs |
| SH200 | 3/16″ | 1 1/2″ | 2″ | 5/8″ | 7/16″ | 5/16″ | 3/16″ | 600 lbs | 0.30 lbs |
| SH250 | 1/4″ | 2″ | 2 1/2″ | 5/8″ | 7/16″ | 5/16″ | 1/4″ | 685 lbs | 0.50 lbs |
| SH250- 1/8 |
1/8″ | 2″ | 2 1/2″ | 5/8″ | 7/16″ | 5/16″ | 1/8″ | 685 lbs | 0.50 lbs |
| SH300 | 1/4″ | 2 1/2″ | 3″ | 5/8″ | 7/16″ | 5/16″ | 1/4″ | 800 lbs | 0.80 lbs |
| SH300- 5/16 |
5/16″ | 2 1/2″ | 3″ | 5/8″ | 7/16″ | 5/16″ | 5/16″ | 800 lbs | 0.80 lbs |
| SH350- 1/4 |
1/4″ | 3″ | 3 1/2″ | 1″ | 5/8″ | 15/32″ | 5/16″ | 1550 lbs | 1.30 lbs |
| SH550 | 5/16″ | 3″ | 3 1/2″ | 1″ | 5/8″ | 15/32″ | 5/16″ | 1550 lbs | 1.30 lbs |
| SH350- 3/8 |
3/8″ | 3″ | 3 1/2″ | 1″ | 5/8″ | 15/32″ | 3/8″ | 1550 lbs | 1.30 lbs |
| SH400 | 3/8″ | 3 1/4″ | 4″ | 1″ | 5/8″ | 15/32″ | 3/8″ | 1700 lbs | 1.80 lbs |
| SH500 | 3/8″ | 4 1/4″ | 5″ | 1″ | 5/8″ | 15/32″ | 3/8″ | 1850 lbs | 2.90 lbs |
Options:
- Stainless Steel Available in Sizes 1 1/2″ – 5″
- Bearing Option Available
