Grade 100 Connecting Link

  • 1/2″ – 12,000 lb. WLL
  • Grade 80 – Alloy
  • Many applications
Working
Load Limit
Lbs 		For Grade
100 Chain
Inches		 Dimensions Inches N.W.
Lbs
K A D B
2,700 7/32 1.69 0.59 0.28 0.67 0.2
4,300 1/4-5/16 2.25 0.79 0.35 0.89 0.4
8,800 3/8 2.68 1.02 0.50 1.06 0.6
15,000 1/2 3.58 1.19 0.62 1.42 1.5
22,600 5/8 3.98 1.42 0.75 1.54 2.4
35,300 3/4 4.62 1.65 0.91 1.73 3.7
42,700 7/8 5.98 1.93 0.94 2.32 6.6
59,700 1 6.38 2.17 1.19 2.44 10.1
90,400 1-1/4 7.99 2.72 1.42 3.11 18.9
Chain Sling Components 2

CM Weblok Assembly

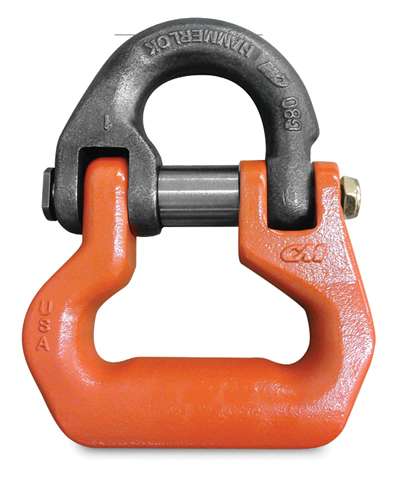

CM® WebLok Sling Assemblies combine a CM Hammerlock® coupling link with a CM web sling attachment, making it ideal for use with synthetic slings. The CM Weblock features a double load pin retention system to prevent the load pin from backing out during extreme use-making these sling assemblies incredibly safe! Available in 4 Sizes: 3/4″, 7/8″, 1″ & 1-1/4″

  • Versatile and easy to use with high-performance synthetics: Simply connect a sling to the bottom of the Weblok, and a master link or other rigging attachment to the top to efficiently and safely lift your load
  • Forged Alloy Steel construction provides greater ductility, better fatigue life and higher tensile strength in a smaller structure than cast rigging, with less risk of internal defects
  • Orange Powder Coated Finish makes the bottom portion of the weblock easily recognizable as a CM product, creates durability, and provides an extra-smooth surface for synthetic attachments
  • WORKING LOAD LIMIT: Up to 75,000 LBS.
  • 5:1 Design Factor and 100% Proof Tested
  • Meets ASTM A9652 & WSTDA-RSA1 Standards
Chain Sling Components 2
Size
Inches		 WLL
Lbs
5:1		 WLL
Lbs
4:1		 Locknut Weight
Lbs
3/4 15,000 18,750 1/2-13UNC 6.62
7/8 25,000 31,250 5/8-11UNC 8.96
1 40,000 50,000 5/8-11UNC 15.83
1-1/4 60,000 75,000 3/4-16UNC 25.35

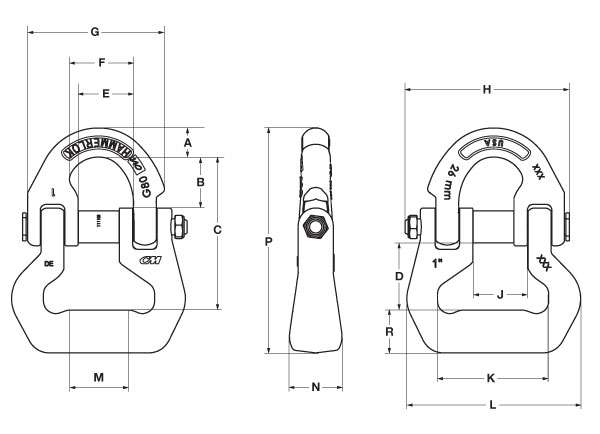

Size
In		 Dimensions Inches
A B C D E F G H
3/4 1.039 2.022 5.467 2.132 1.547 1.781 4.313 5.341
7/8 1.046 1.829 5.145 2.004 1.919 2.247 5.003 6.103
1 1.250 2.313 6.573 2.885 2.365 2.735 5.856 7.030
1-1/4 1.531 2.625 7.406 3.219 2.701 3.000 7.035 8.536
Size
In		 Dimensions Inches

J

 K L M N P R
3/4 1.547 2.750 4.479 1.200 1.380  7.607 1.100
7/8 1.919 3.750 6.000 2.410 1.750 7.601 1.410
1 2.365 4.744 7.446 2.500 2.250 9.670 1.848
1-1/4 2.701 5.753 8.882 3.375 2.310 10.918 1.980

CM Eye Foundry Hook

WLL: 4,300 to 72,300 lbs.
Sizes: 9/32 to 1-1/4 in.

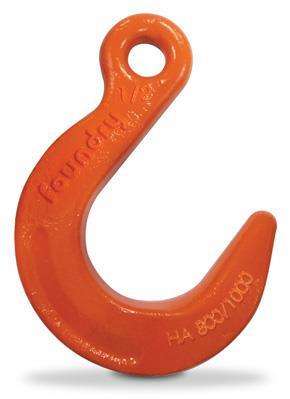

CM Herc-Alloy® Eye Hooks are an excellent choice when used with mechanical couplers such as the CM Hammerlok®. These hooks are designed for overhead lifting and can be used in place of Clevlok® hooks if preferred.

  • For use with both Grade 80 & 100 chain
  • Throat opening up to 6″
  • Quench and tempered alloy steel
  • Fatigue rated
  • Durable orange powder coated finish
  • Chart Note: * Herc-Alloy 800® only
  • Design factor 4:1
Chain Sling Components 2
EYE FOUNDRY HOOK DUAL RATED FOR USE WITH HA800 OR HA1000

Size
Inches		 WLL
Lbs		 Weight
Lbs
9/32 4,300 2.4
3/8 8,800 4.5
1/2 15,000 7.1
5/8 22,600 11.6
3/4 35,300 20.0
7/8* 34,200 26.0
1* 47,700 36.8
1-1/4* 72,300 58.4

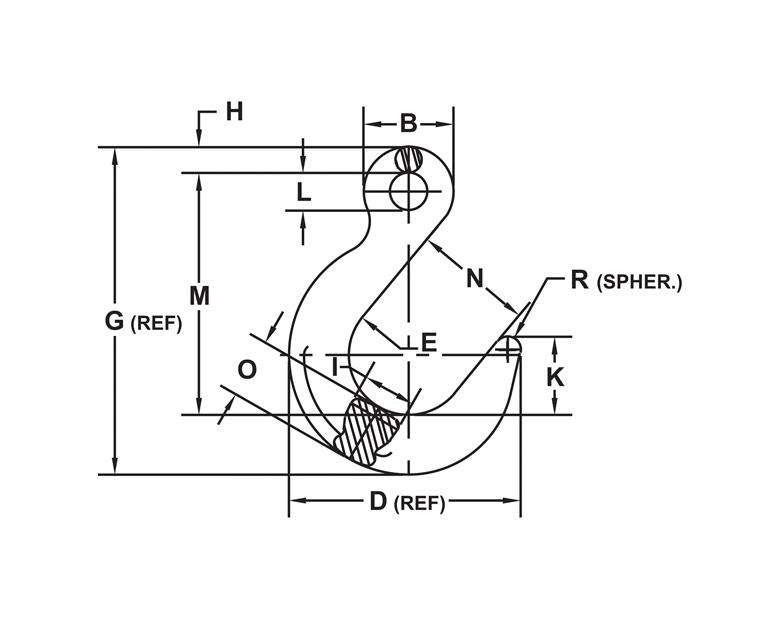

Size
Inches		 Dimensions Inches
K P A D T H
9/32 1.56  4.73 2.50 6.45 0.47 1.00
3/8 2.00 5.72 3.00 7.88 0.63 1.27
1/2 2.50 6.75 3.50 9.38 0.75 1.50
5/8 3.00 7.81 4.00 10.97 0.88 1.81
3/4 3.50 9.10 4.50 12.81 1.00 2.20
7/8* 4.00 10.09 5.00 14.23 1.13 2.25
1* 4.50 11.55 5.50 16.17 1.29 2.63
1-1/4* 5.13 12.87 6.00 18.03 1.38 3.17
Size
Inches		 Dimensions Inches
K P A D T H
9/32 1.56 0.63 4.75 2.50 1.23 0.25
3/8 1.88 0.80 5.77 3.00 1.50 0.31
1/2 2.22 1.00 6.88 3.50 1.75 0.38
5/8 2.63 1.25 8.06 4.00 2.03 0.44
3/4 3.00 1.50 9.25 4.50 2.56 0.50
7/8* 3.38 1.70 10.38 5.00 2.78 0.56
1* 3.75 2.13 11.56 5.50 3.45 0.62
1-1/4* 4.25 2.33 12.88 6.00 3.81 0.75
