• Material: alloy steel, grade 10, quenched and tempered
• Safety factor: MBL equals 4 x WLL

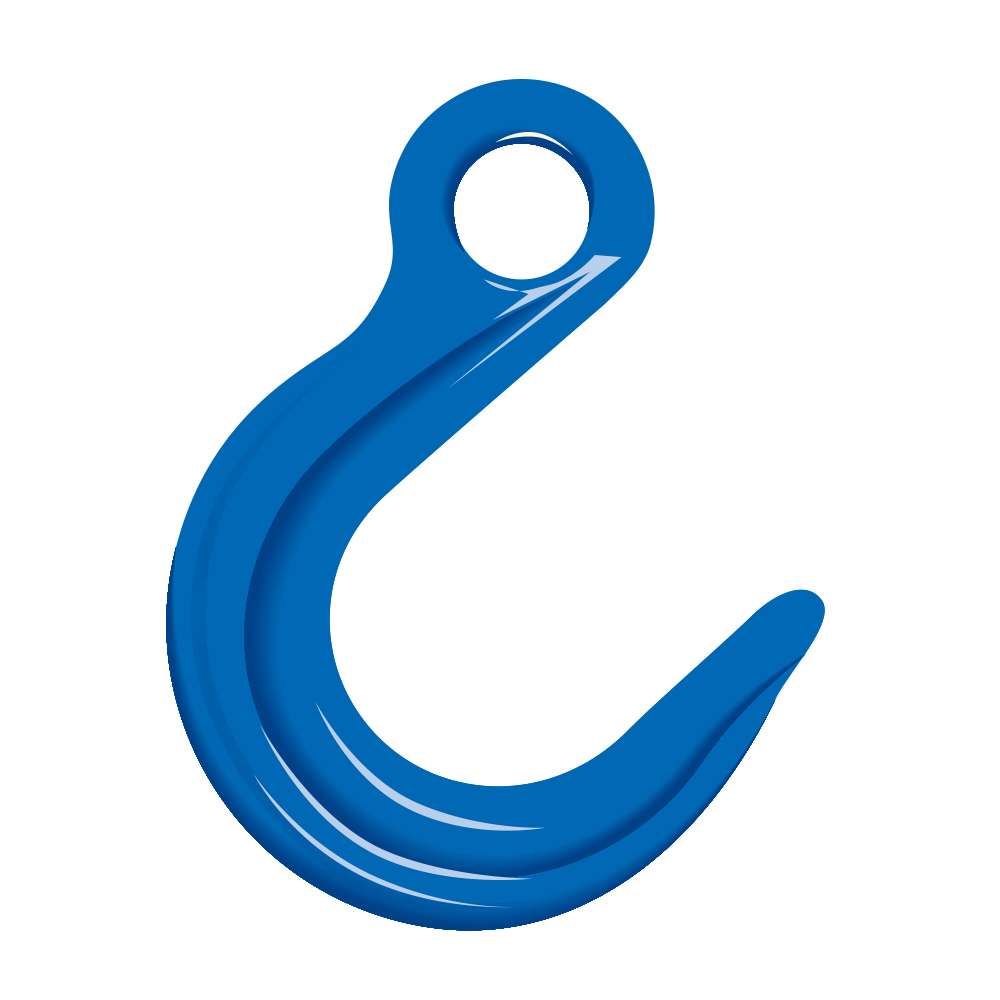

• Finish: painted blue
• Temperature range: -40°C up to +200°C
| For Chain Size |
Working Load Limit (t) |
mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

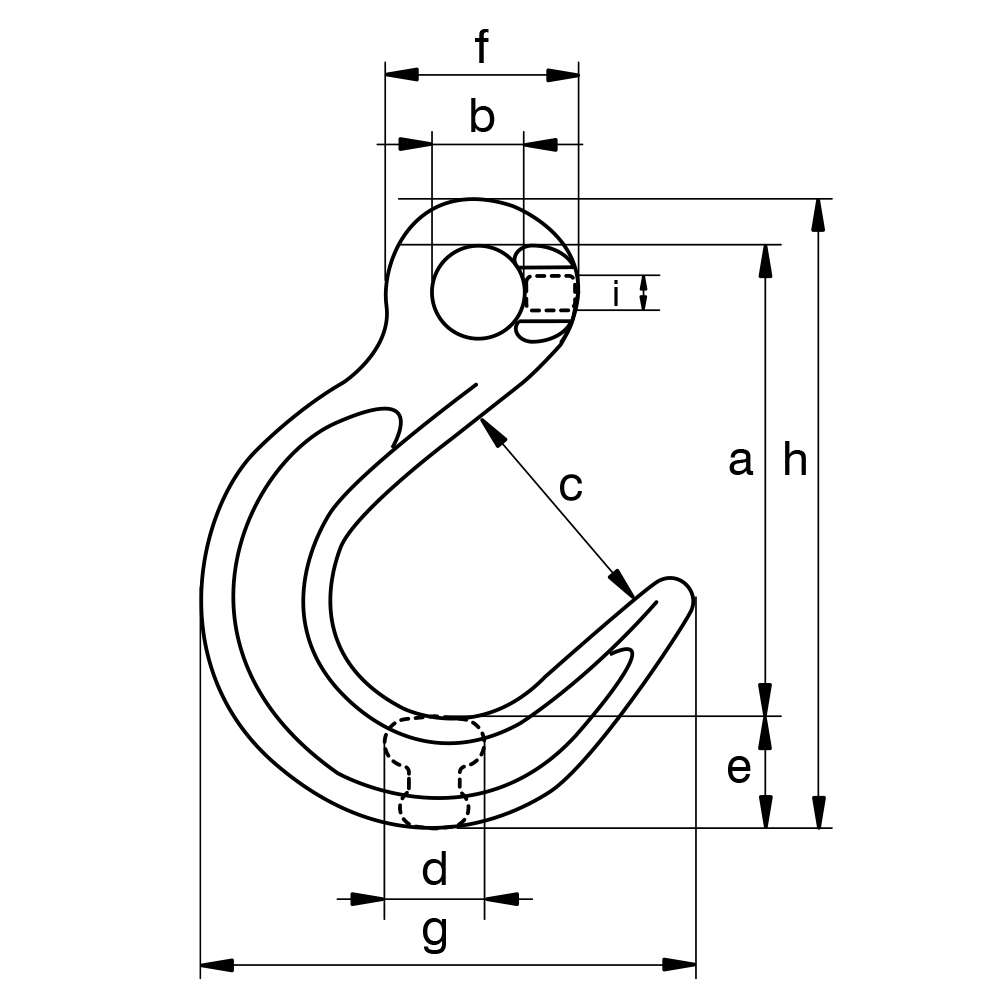

| a | b | c | d | e | f | g | h | i | |||
| 6 | 7/32 | 1.4 | 93 | 18 | 48 | 17 | 22 | 38 | 97 | 124 | 6 |
| 8 | 9/32 – 5/16 | 2.6 | 124 | 25 | 63 | 22 | 29 | 50 | 129 | 165 | 8 |
| 10 | 3/8 | 4 | 157 | 33 | 80 | 28 | 36 | 65 | 161 | 208 | 10 |
| 13 | 1/2 | 6.8 | 190 | 44 | 96 | 36 | 46 | 84 | 198 | 256 | 13 |
